Seetronic BNC Male Cable Connector SEBNCM-75GF7

SKU: CONN1450
Seetronic BNC Male Cable Connector SEBNCM-75GF7
Click to enlarge

    £3.70 inc VAT
    £3.08 ex VAT

    240 in stock

    Order in 17h 4m 50s for delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Bulk discounts available
    Quantity Unit price You save
    10–24 £3.52 5%
    25–39 £3.33 10%
    40+ £3.15 15%
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

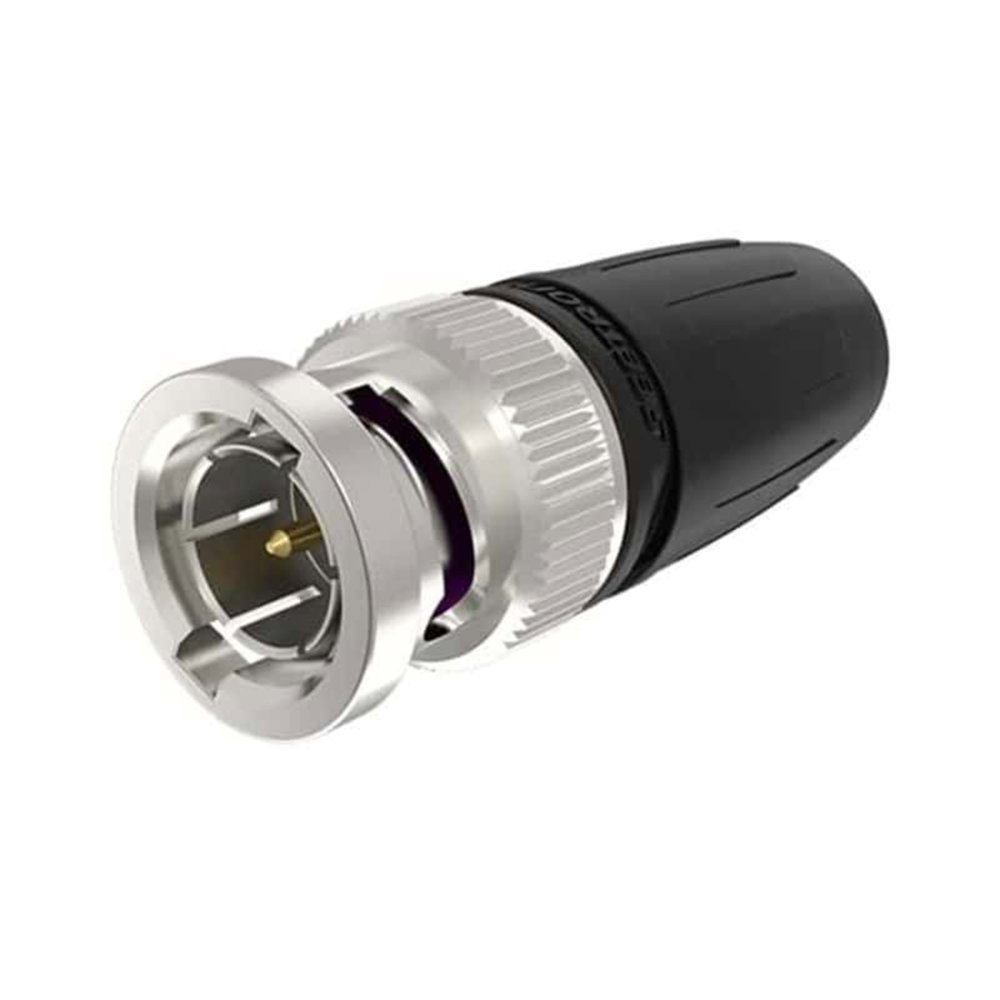

    The Seetronic SEBNCM-75GF7 is a true 75 ohm BNC male crimp cable connector for UHD and 12G-SDI video assemblies. The reduced-diameter centre pin maintains characteristic impedance through the transition for low return loss at high frequencies, and the bayonet lock provides a fast, secure mating action.

    Key Features
    ✓True 75 ohm impedance, low return loss
    ✓Reduced-diameter centre pin holds impedance through the transition
    ✓Gold-plated centre contact
    ✓Two-piece nickel-plated copper housing
    ✓Bayonet lock for fast secure mating
    ✓Crimp termination with strain-relief boot
    Specifications
    Connector type BNC male cable, crimp
    Impedance 75 ohm
    Cable OD Up to 4.7 mm
    Pin crimp 1.07 mm
    Shield crimp 5.0 mm hex
    Service life Over 1,000 mating cycles

    More Information

    • True 75 Ω impedance with low return loss—ideal for UHD video transmission
    • Bayonet locking system for fast and secure connection
    • Gold-plated centre pin for stable signal performance
    • Reduced-diameter pin design to maintain impedance through transitions
    • Durable 2-piece design with nickel-plated copper housing
    • 5.0mm hex crimp for shield, 1.07mm crimp for pin
    • Supports cable OD up to 4.7mm with strain relief boot
    • Rated for >1000 mating cycles

    Manuals & Downloads

    PDFDatasheets & Technical Docs: CONN1450_DatasheetPDF
