Penn Elcom PDU32-CF 2U 32A Dual-Circuit PDU, 8 x powerCON, C-Form Input with Metering

SKU: PENN420
Penn Elcom PDU32-CF 2U 32A Dual-Circuit PDU, 8 x powerCON, C-Form Input with Metering
Click to enlarge

    £360.84 inc VAT
    £300.70 ex VAT

    Usually delivered in 1–2 working days
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

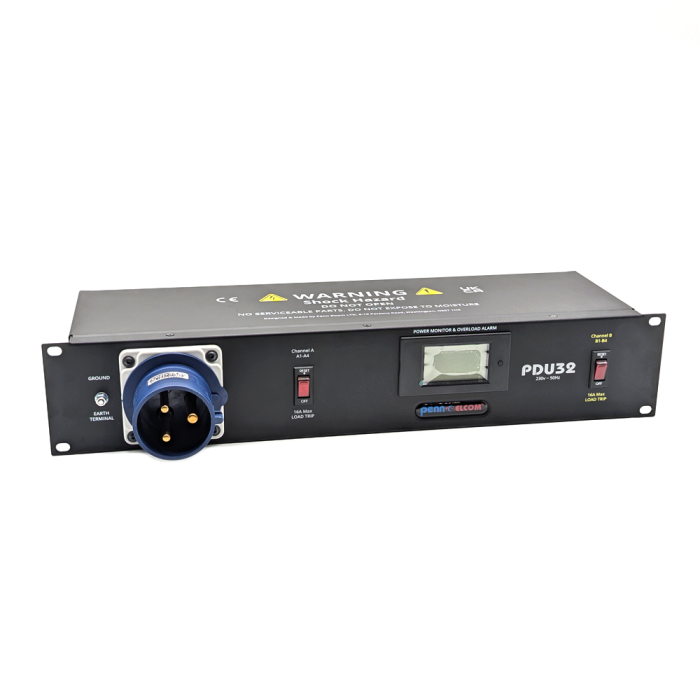

    2U 19” Rack Mount Power Monitoring Distribution Unit. 32 Amp Input – 2x Banks on 16 Amp Outputs.
    The PDU has 32A input breaking out on two banks, with four PowerCon connectors each bank with 16 Amp thermal breakers all with Power Monitoring. Tailor made for Audio Visual, Theatre Multimedia & Touring rack applications.
    Input: 32 Amp 240v C-Form single-phase blue connector IP44
    Channel / Circuit A Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXB (CONAC3MPXXB) on 16 Amp Overload protection.
    Channel / Circuit B Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXB (CONAC3MPXXB) on 16 Amp Overload protection.
    Also Includes:
     – LCD Power Monitor that will display Current, Voltage, Power & Energy Levels.
     – Two separate 16 Amp thermal breaker switches one on each bank of 4 outputs.
     – Earthing Link, 4mm Screw terminal for Grounding Purposes.
     – Colour coded channels, A (grey) & B (yellow) for easy identification.

    Technical Information

    Data Sheet Data Sheet and User Guide
    Number of Sockets 8 Sockets
    Size (U) 2U
    Weight 2.69kg
    Finish Black
