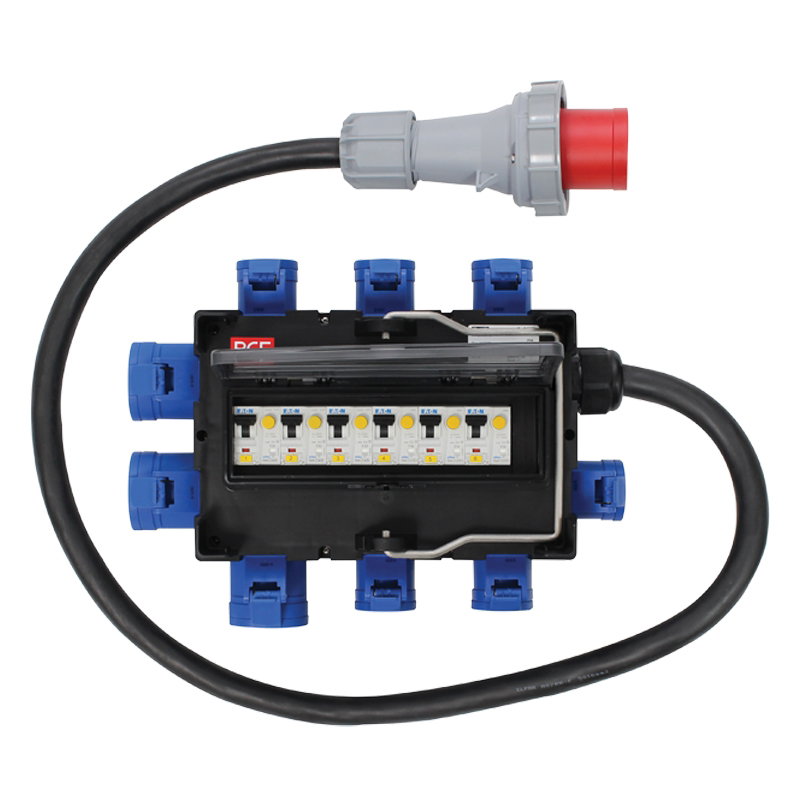

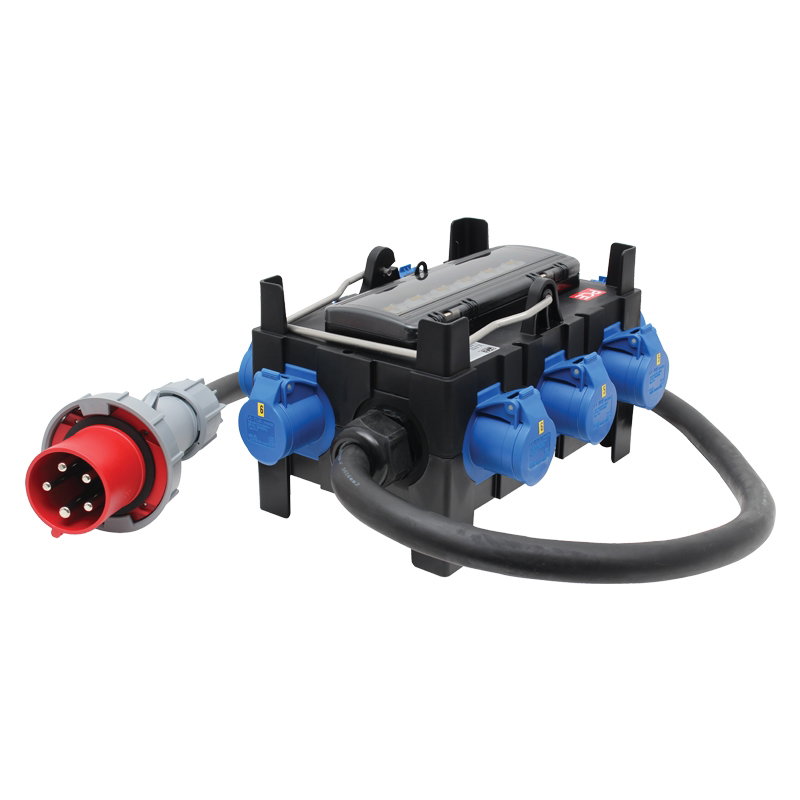

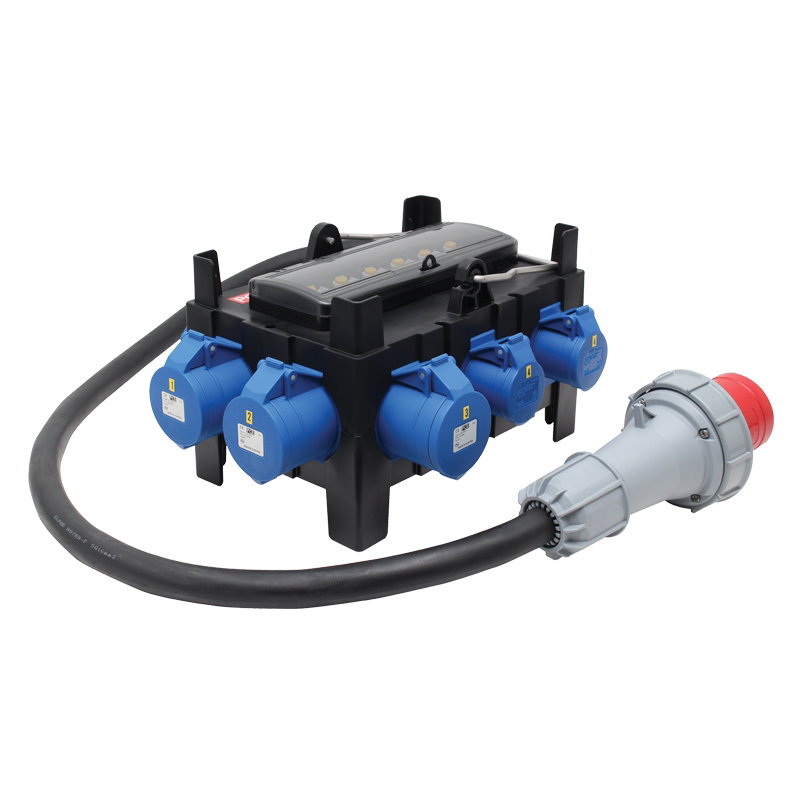

The PCE ISCHL 9130027 is a 63A three-phase distribution box built for events, marquees, touring and temporary site power. A 63A 5-pin 415V three-phase input feeds three 32A and six 16A 230V single-phase commando outputs, each individually protected by a 30mA Type C RCBO. Stackable shock-resistant polyamide construction and an IP44 rating make it the workhorse distro for production crews running multi-circuit lighting and PA rigs.
INPUT
63A 415V
3P+N+E
32A OUT
3 sockets
230V single phase
16A OUT
6 sockets
230V single phase
PROTECTION
9 x RCBO
30mA Type C
RATING
IP44
Splash proof
Per-circuit RCBO protection
Every output socket has its own 30mA Type C RCBO, so a fault on one circuit will not trip the entire distro. This is the key advantage over MCB-only or single-RCD designs and the reason RCBO distros have become standard on professional events.
Features
✓63A 5-pin 415V three-phase input on 1.2m trailing lead with plug fitted
✓3 x 32A 230V 2P+E outputs
✓6 x 16A 230V 2P+E outputs
✓Per-circuit 30mA Type C RCBO protection
✓Shock-resistant polyamide enclosure
✓IP44 splash proof rating
✓Stackable design saves storage and transport space
✓Clear MCB window for at-a-glance status checks
Specifications
| Manufacturer code | 9130027 |
| Input | 63A 415V 50/60Hz 5-pin 3P+N+E (1.2m trailing lead) |
| Outputs | 3 x 32A 230V + 6 x 16A 230V 2P+E |
| Protection | 9 x 30mA Type C RCBO (one per output) |
| Enclosure | Shock-resistant polyamide |
| IP rating | IP44 |
| Dimensions | 200 x 400 x 320mm |
| Weight | 8.0kg |
