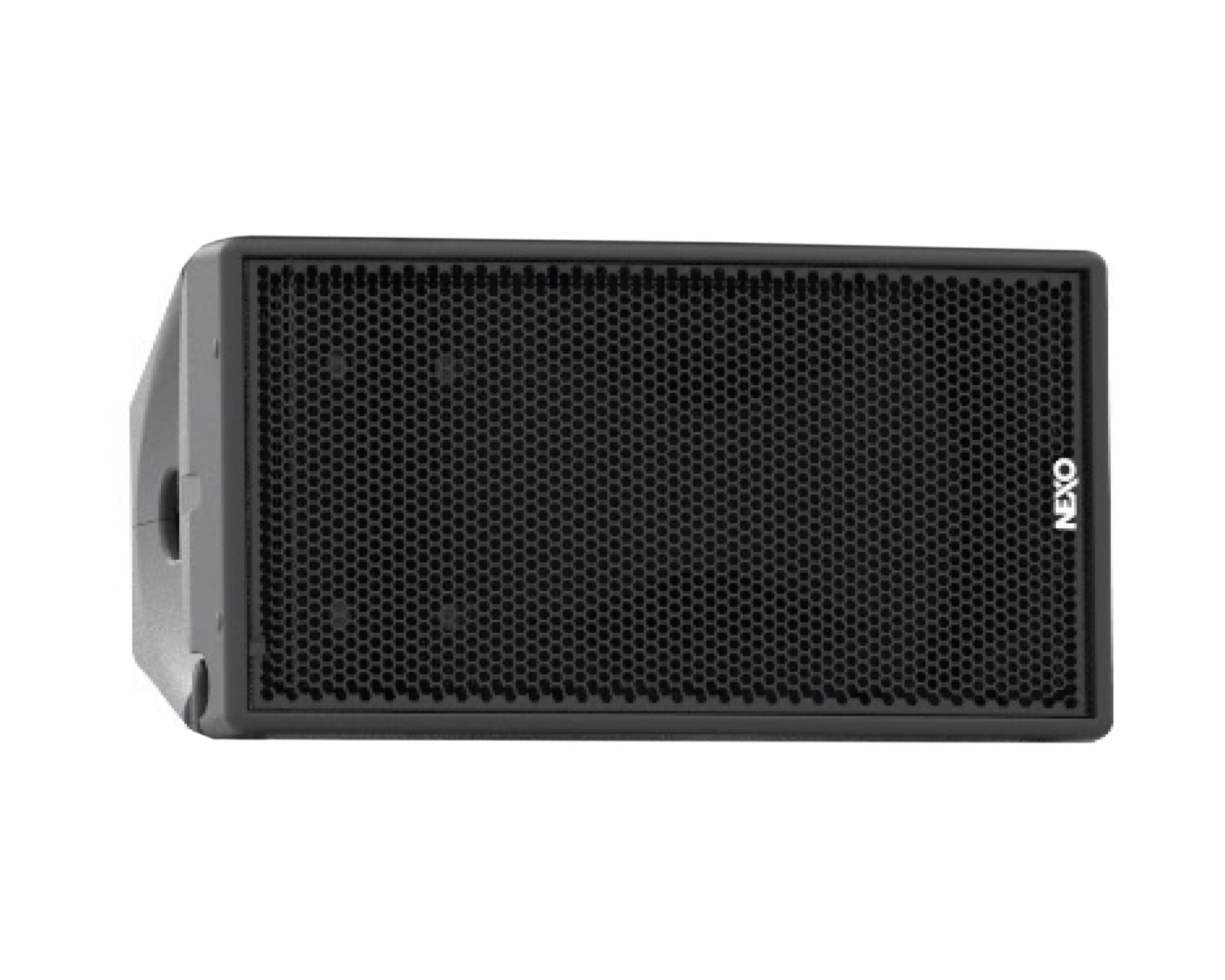

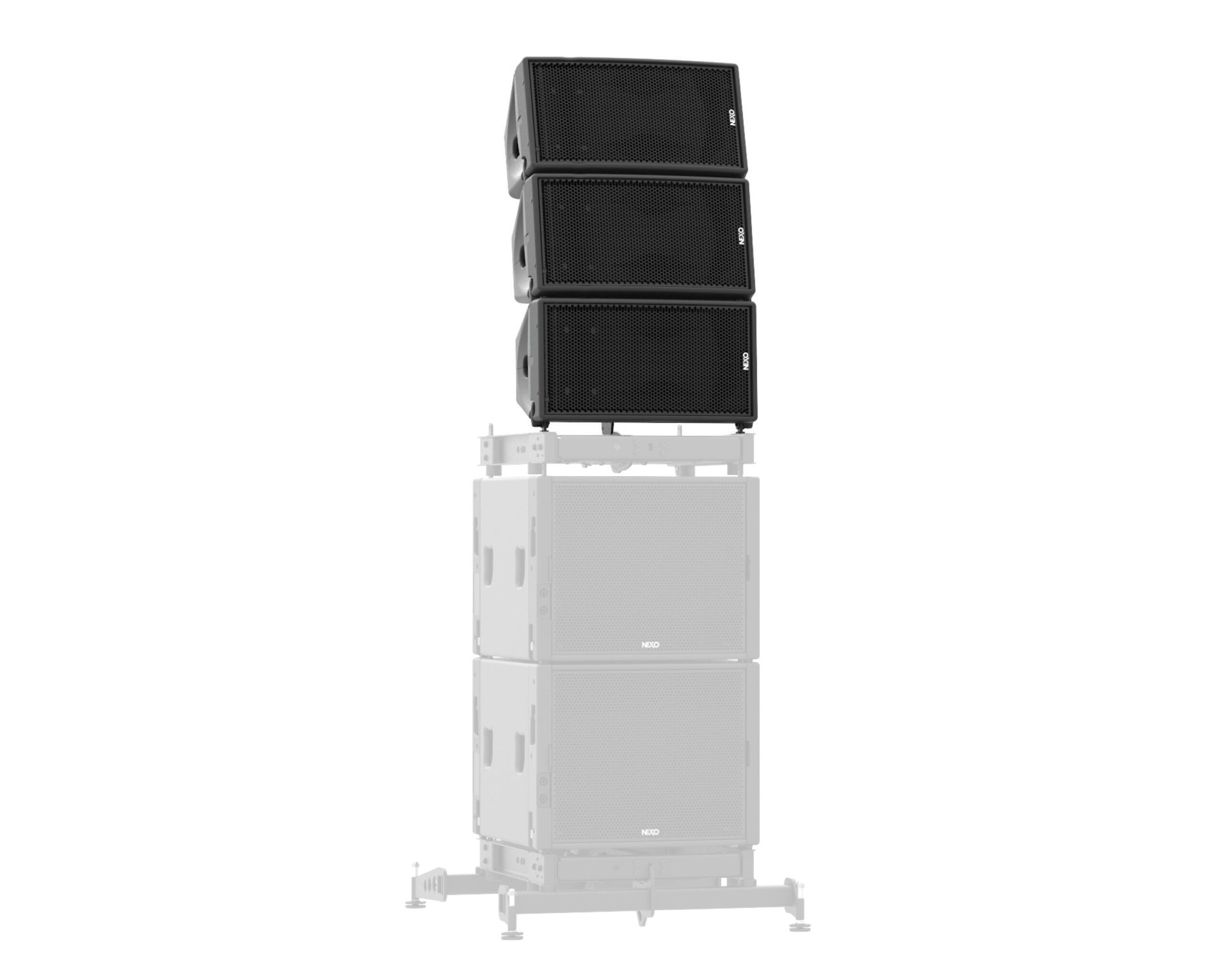

The NEXO GEO M1025-I is the install-specification, 25° vertical dispersion element of the GEO M10 compact line array series. Built around a 10" neodymium LF driver with switchable horizontal dispersion, it is aimed at fixed installations – houses of worship, corporate venues, sports and leisure facilities – where a discreet, permanently rigged line source is required.
LF Driver
10"
Neodymium
Vertical Dispersion
25°
Fixed
Horizontal
80° / 120°
Switchable
Weight
21 kg
Per cabinet
Tool-free horizontal switching

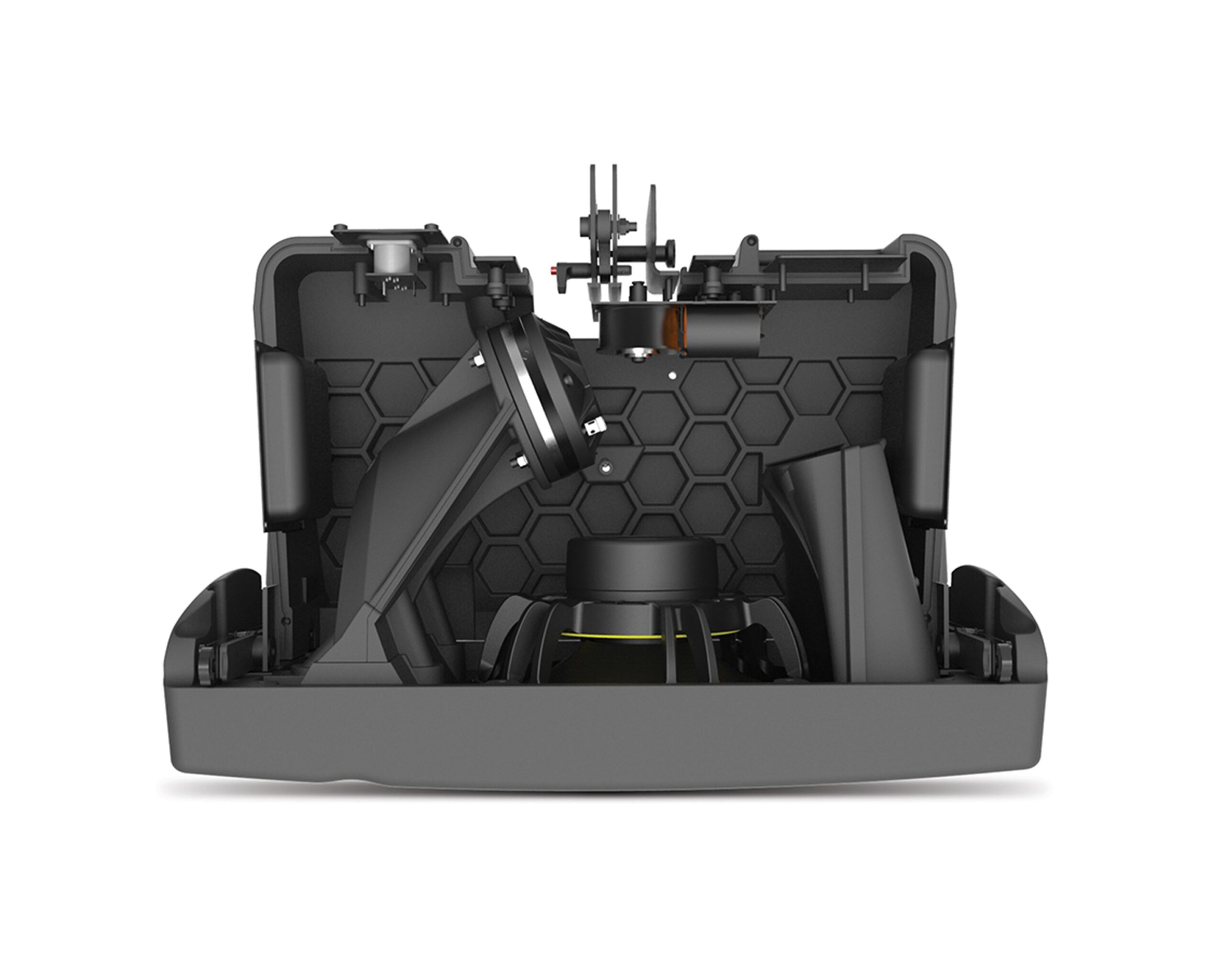

Horizontal dispersion is set to 80° or 120° using magnetic flanges in the waveguide – no tools required. This lets a single cabinet type be reconfigured on site to match the coverage the room demands.
Features
✓Install-specification GEO M10 line array element
✓10" neodymium LF driver for high output at low weight
✓Fixed 25° vertical dispersion for wide short-throw coverage
✓Tool-free 80° / 120° horizontal switching via magnetic waveguide flanges
✓Reticulated urethane co-polymer cabinet construction

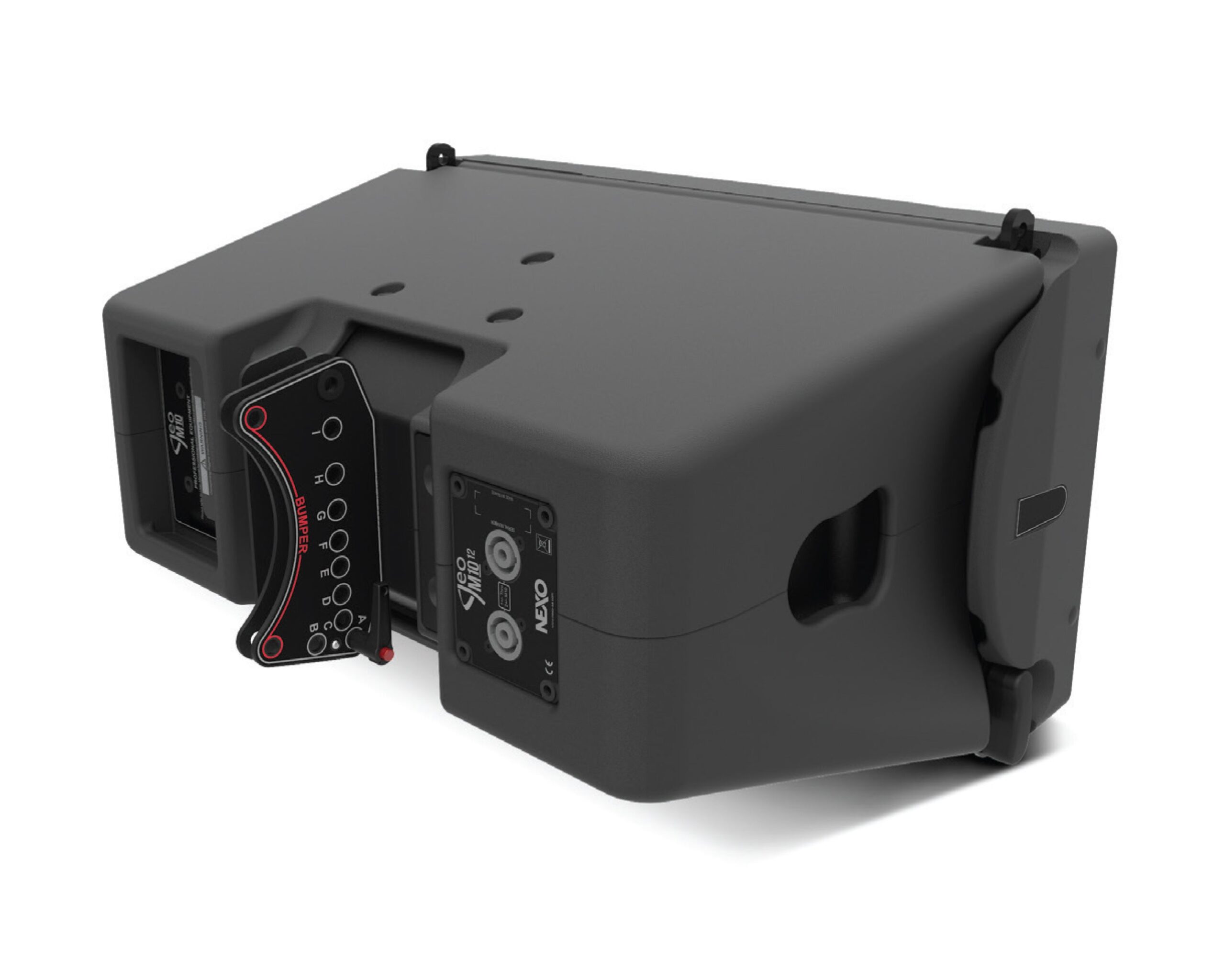

✓Integral rigging with no loose parts
✓Rear and side handles for handling and deployment
✓Available in black, white or custom RAL colours
Note
This is the install (-I) variant of the GEO M1025. The touring GEO M1025 shares the same driver complement and dispersion; the -I designation denotes the install-specified version.
Specifications
| Type | GEO M10 line array element (install) |
| LF driver | 10" neodymium |
| Vertical dispersion | 25° |
| Horizontal dispersion | 80° or 120° (switchable, tool-free) |
| Dimensions (W x H x D) | 531 x 288 x 355 mm |
| Weight | 21 kg |
| Cabinet | Reticulated urethane co-polymer |
| Finish | Black, white or custom RAL |
