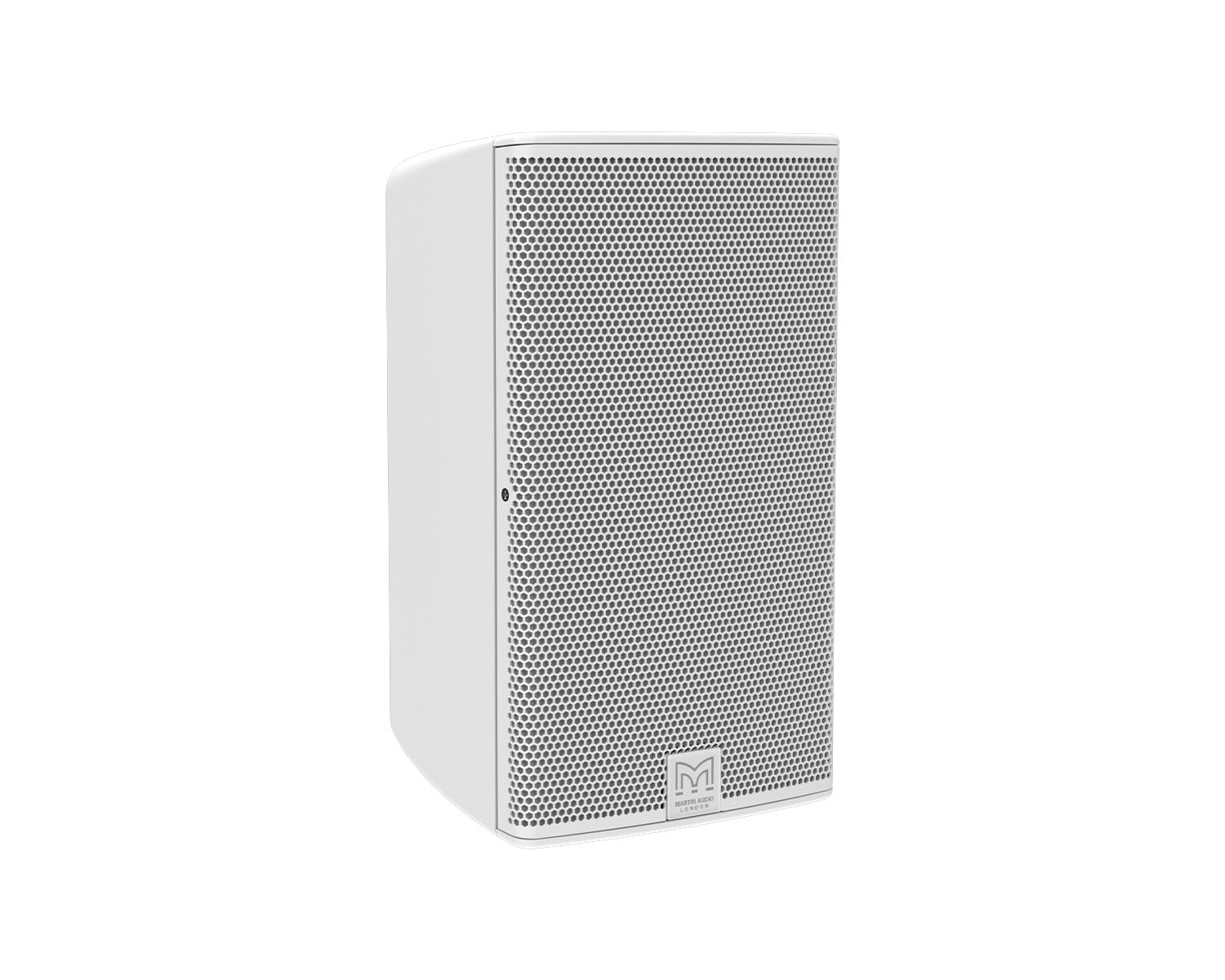

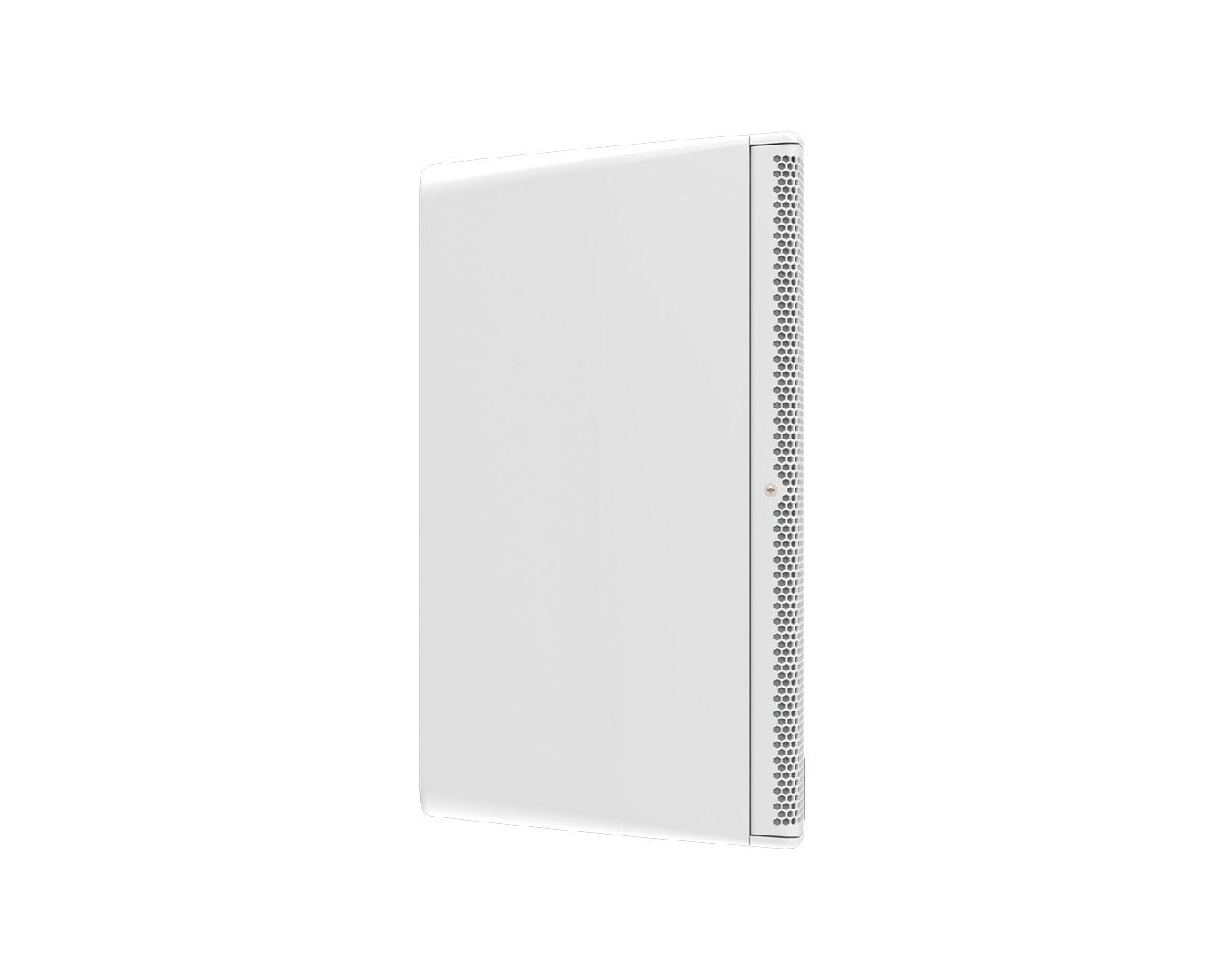

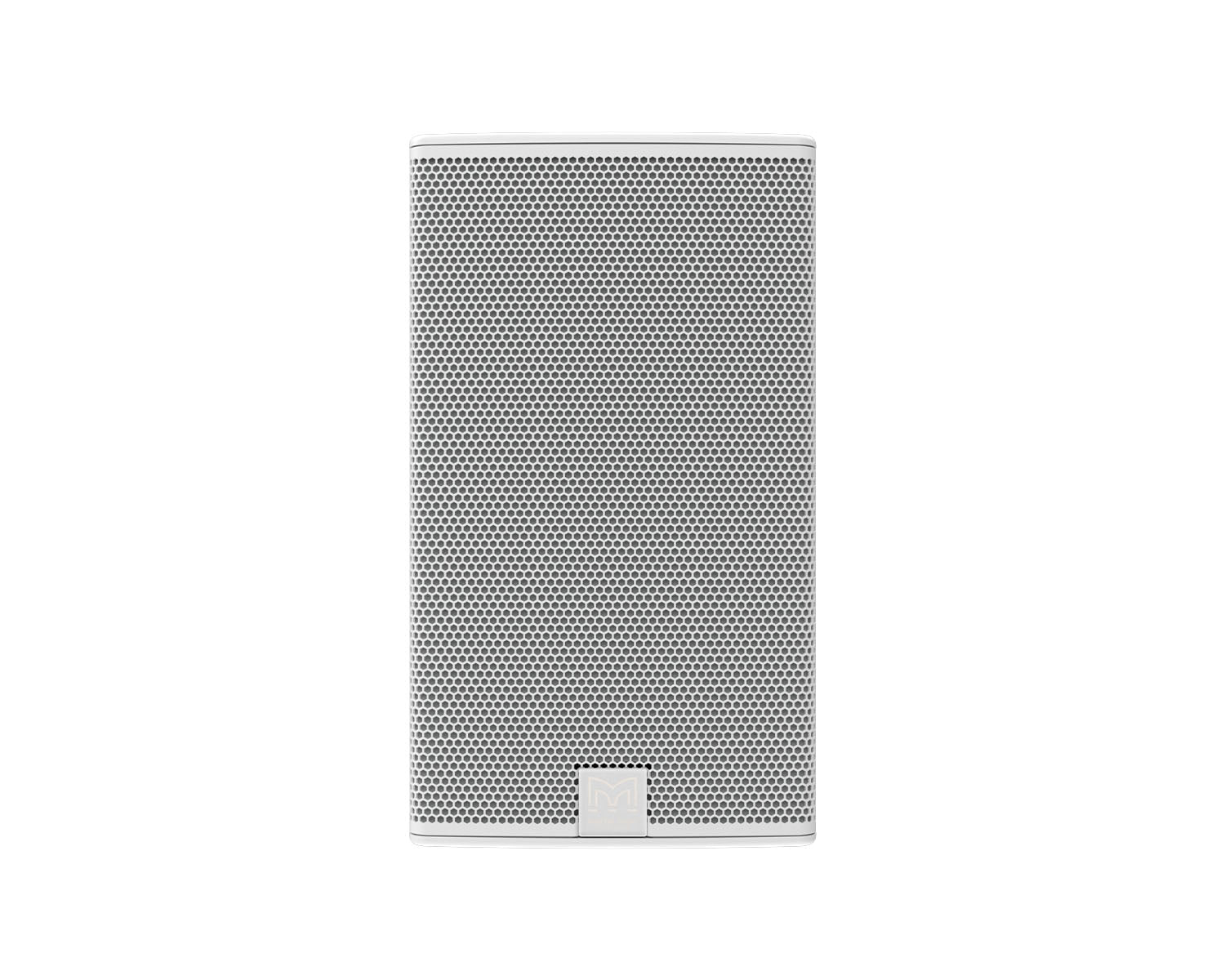

The Martin Audio ADORN A80T in white is the largest speaker in the ADORN range, featuring an 8″ driver and integrated 70V/100V line transformer for distributed audio systems. With 200W AES power handling and 120 dB peak output, it bridges the gap between the compact ADORN series and the larger CDD range. The white finish blends seamlessly into lighter interiors.
LF Driver
8″ (203mm)
Power Handling
200W AES
800W peak
Peak SPL
120 dB
@ 1 metre
Line Voltage
70V / 100V
Dual-Mode Operation
The A80T supports both 70V/100V line operation via its integrated transformer and low-impedance (8-ohm) operation. Transformer taps are selected via a rotary switch. For low-impedance use, multiple units can be driven in parallel from a single channel of a Martin Audio VIA2502 or VIA5002 amplifier.
Features
✓

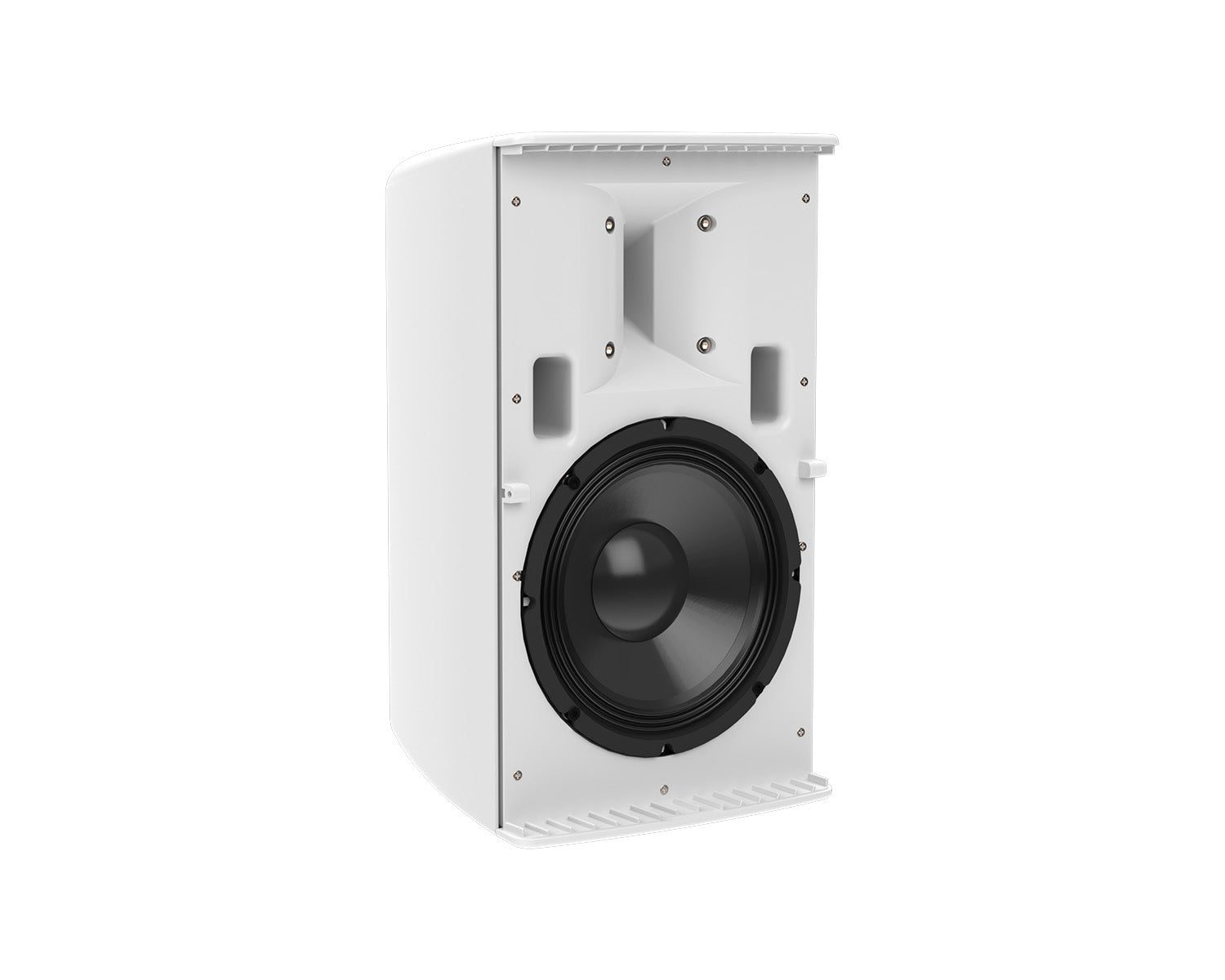

8″ LF driver with 1″ polymer dome HF compression driver
8″ LF driver with 1″ polymer dome HF compression driver
✓

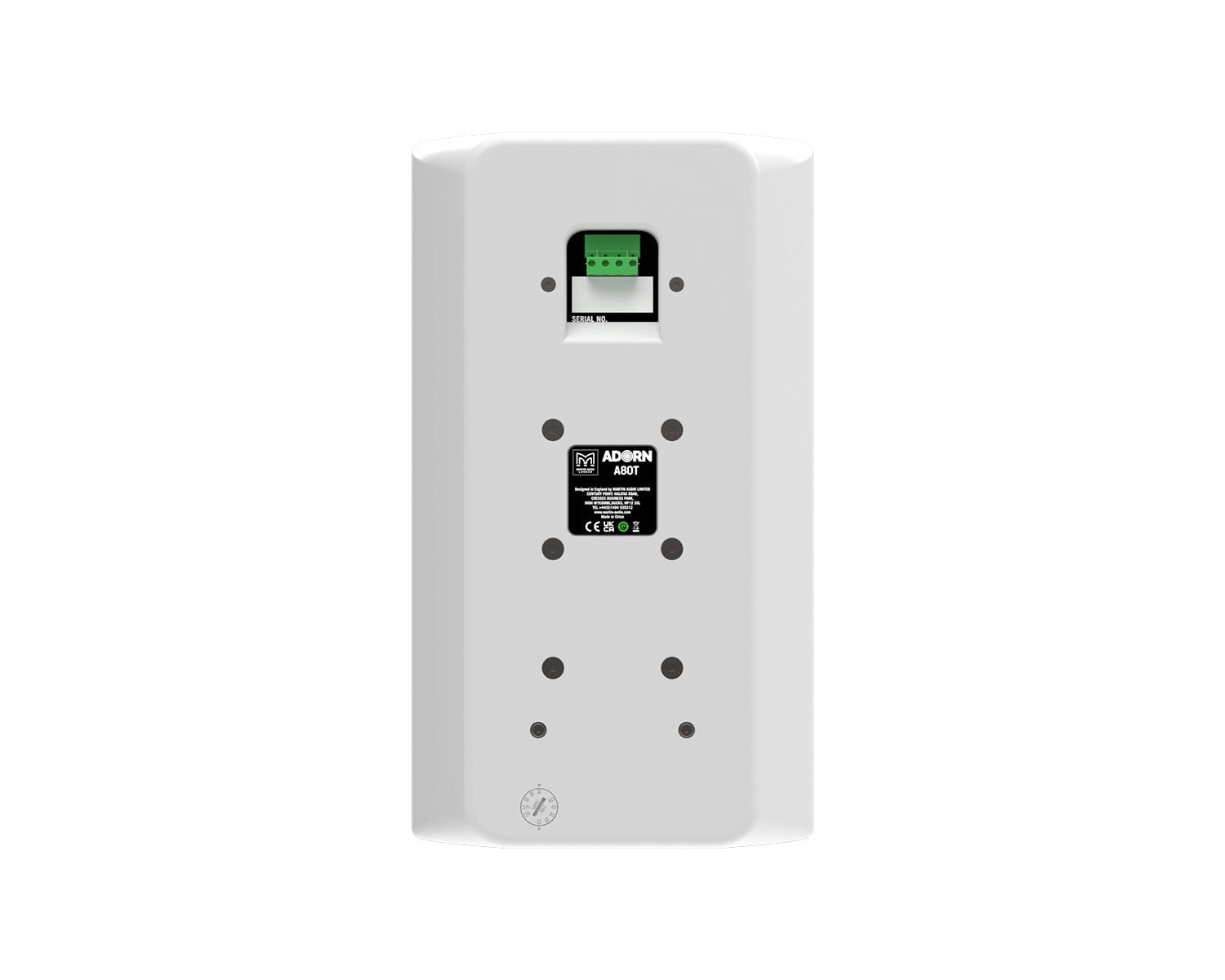

Integrated 70V/100V transformer with rotary tap selector
Integrated 70V/100V transformer with rotary tap selector
✓
90° x 50° horn for focused, controlled coverage
90° x 50° horn for focused, controlled coverage
✓
Strong bass reproduction extending down to 63 Hz
Strong bass reproduction extending down to 63 Hz
✓
8-ohm impedance for parallel drive in low-impedance mode
8-ohm impedance for parallel drive in low-impedance mode
✓
120 dB peak output for foreground music applications
120 dB peak output for foreground music applications
✓
Elegant, compact enclosure for architectural environments
Elegant, compact enclosure for architectural environments
✓
White finish — black version also available (A80T)
White finish — black version also available (A80T)
Note
An optional weatherised connector cover kit (ASF09007) is available separately for semi-exposed installations.
Specifications
| Type | Two-way passive with 70V/100V transformer |
| LF Driver | 8″ (203 mm) |
| HF Driver | 1″ (25 mm) polymer dome compression driver |
| Power Handling (AES / Peak) | 200W / 800W |
| Peak SPL | 120 dB @ 1m |
| Dispersion (H x V) | 90° x 50° |
| Frequency Response | 63 Hz – 20 kHz |
| Nominal Impedance | 8 ohms |
| Finish | White |
| SKU | A80T-W |
