LEDJ Hydralock End Cap Set (Power Out, DMX IN and OUT)
LEDJ Hydralock End Cap Set (Power Out, DMX IN and OUT) £4.00 inc VAT
£3.33 ex VAT
Back to products
LEDJ 1m Seetronic IP 3-Pin Male XLR - 3-Pin Female XLR DMX Cable
LEDJ 1m Seetronic IP 3-Pin Male XLR - 3-Pin Female XLR DMX Cable £10.00 inc VAT
£8.33 ex VAT
LEDJ

LEDJ 10m Seetronic IP 3-Pin Male XLR - 3-Pin Female XLR DMX Cable

SKU: CABL545
LEDJ 10m Seetronic IP 3-Pin Male XLR - 3-Pin Female XLR DMX Cable
LEDJ 10m Seetronic IP 3-Pin Male XLR - 3-Pin Female XLR DMX Cable
Click to enlarge

    £27.00 inc VAT
    £22.50 ex VAT

    119 in stock

    Order in 11h 42m 3s for delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Bulk discounts available
    Quantity Unit price You save
    10–24 £25.65 5%
    25–39 £24.30 10%
    40+ £22.95 15%
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

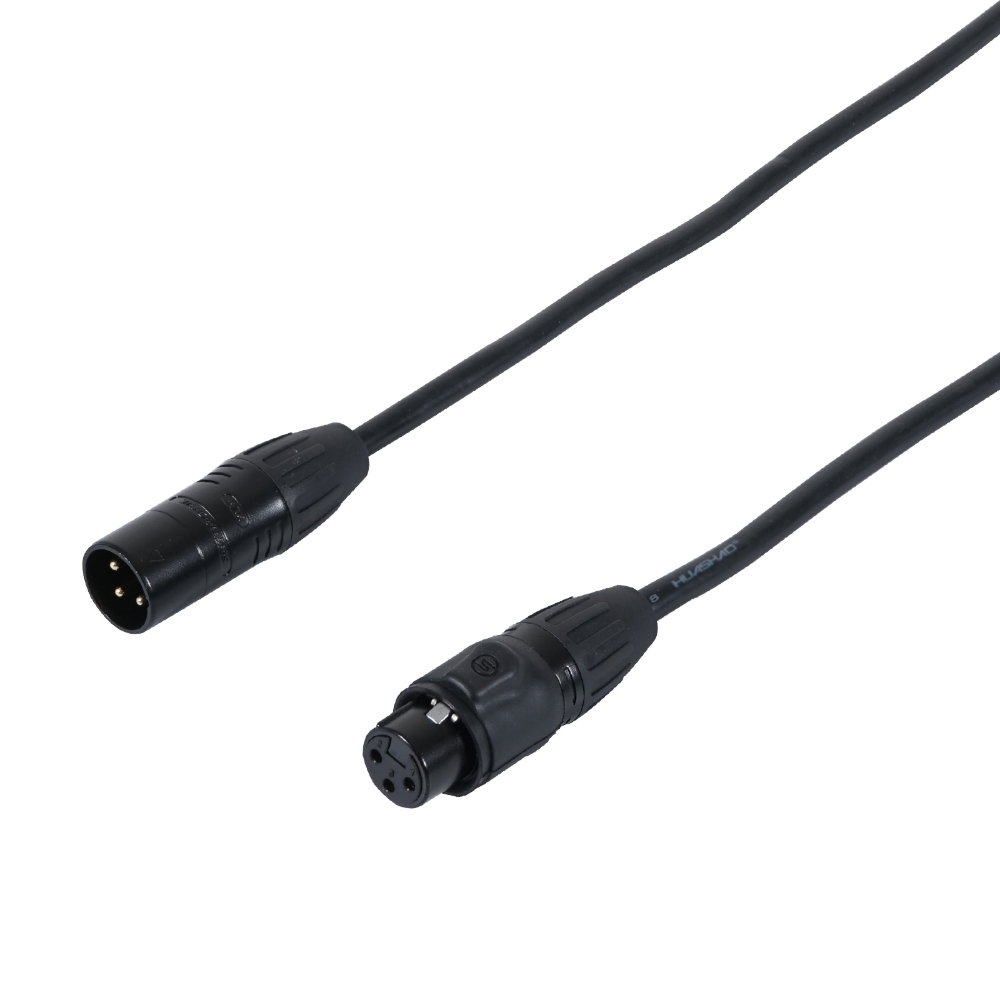

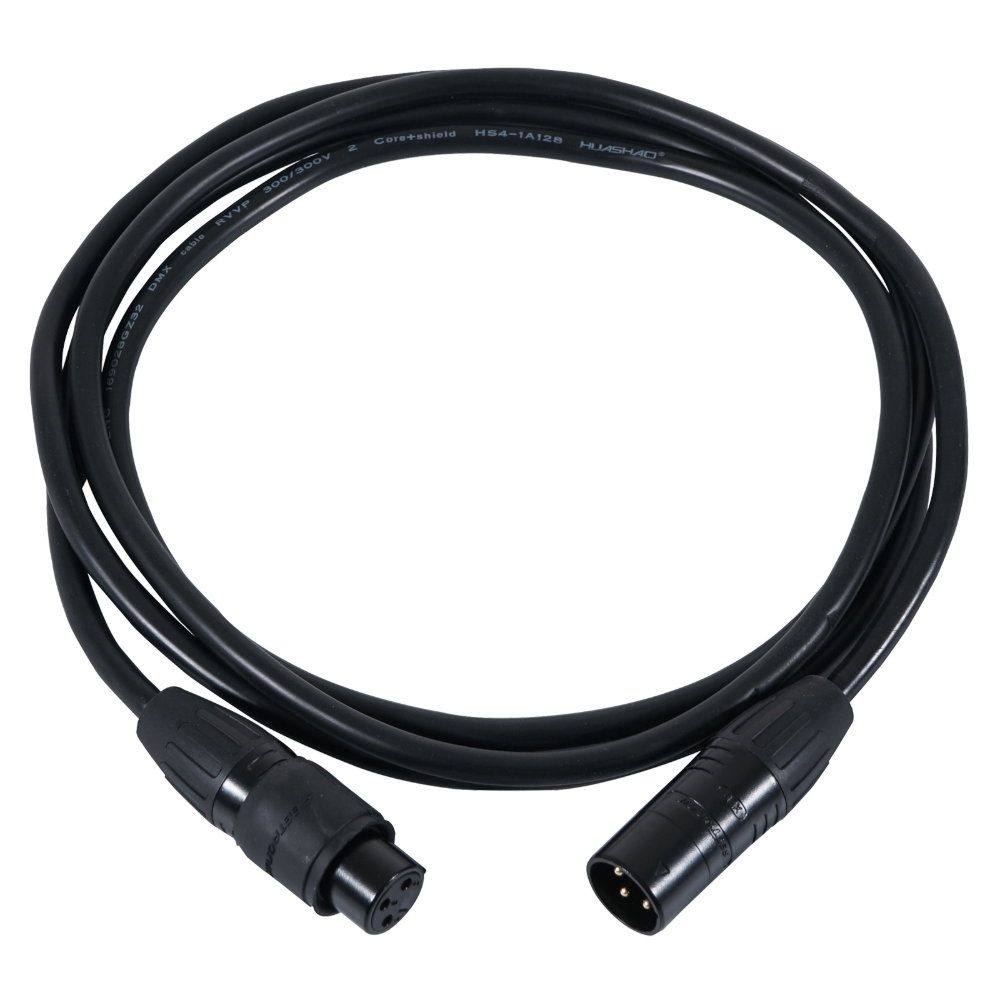

    A 10m IP-rated DMX link cable from LEDJ, terminated with Seetronic 3-pin male and female XLR connectors for outdoor and wet-stage fixture runs. Suitable for permanent installs and touring rigs where standard XLRs would let moisture in.

    LENGTH
    10 m
    male to female

    CONNECTORS
    Seetronic IP
    3-pin XLR

    PROTECTION
    IP65
    when mated IP-to-IP

    SIGNAL
    DMX512
    3-pin standard

    IP rating

    IP65 protection is only maintained when both ends are mated with Seetronic IP rated counterparts. If mated with a standard XLR, the cable still passes signal and is fully cross-compatible, but the seal at that end is broken.

    Features
    ✓
    Seetronic IP-rated 3-pin XLR connectors at both ends
    ✓
    Internal seals on the connector resist moisture ingress
    ✓
    Cross-compatible with standard 3-pin XLRs
    ✓
    IP65 rated when mated to matching Seetronic IP connectors
    ✓
    Suitable for outdoor architectural and event lighting installs
    ✓
    10m length suits inter-fixture runs across a stage or truss
    ✓
    Carries standard DMX512 control data
    ✓
    Daisy-chains exterior LED fixtures and IP moving heads

    Note

    This is the 3-pin variant. If your fixtures use 5-pin DMX (more common on professional consoles and some moving heads), you need the matching 5-pin Seetronic IP version.

    Specifications
    Length 10 m
    Connector A Seetronic IP 3-pin male XLR
    Connector B Seetronic IP 3-pin female XLR
    Ingress protection IP65 (when mated with matching Seetronic IP connector)
    Signal DMX512
    Brand LEDJ
    SKU CABL545

    More Information

    • Seetronic SCWM3-B 3-pin IP65 rated XLR male to SCWF3-B 3-pin IP65 rated XLR female
    • Super flexible, 1 pair screened DMX cable
    • Heat resistant cable
    • 110Ω digital specification cable
    • All internal cores terminated with heatshrink for reliability

    Manuals & Downloads

    PDFDatasheets & Technical Docs: CABL545_Datasheet1PDF
    PDFDatasheets & Technical Docs: CABL545_Datasheet2PDF
