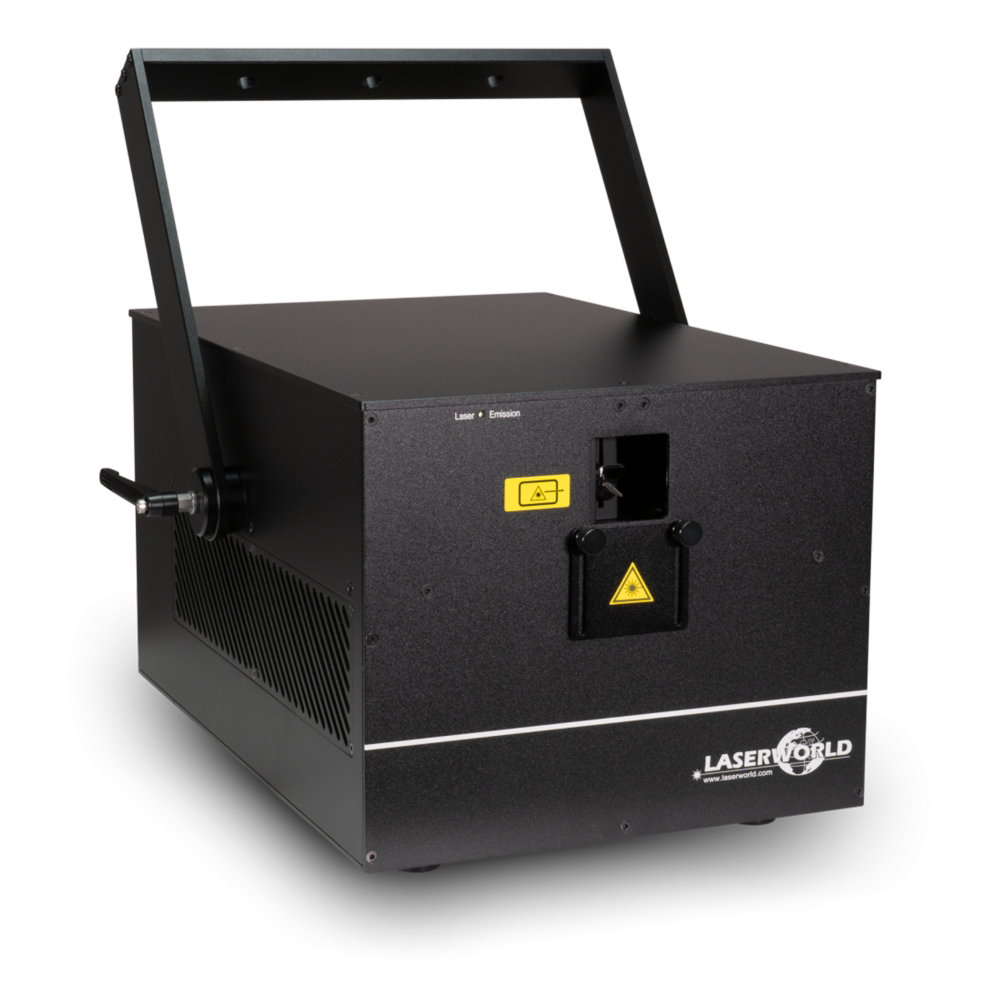

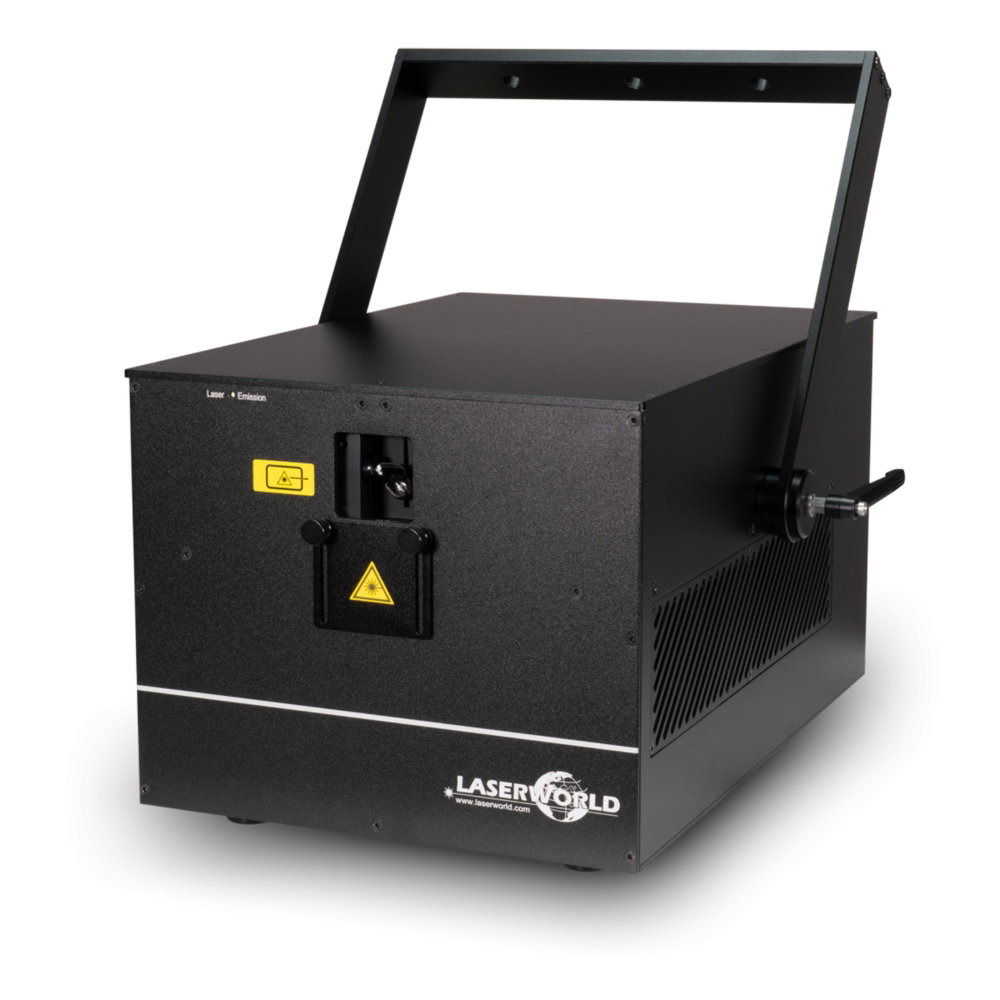

Laserworld CS-24.000RGB FB4

SKU: LW0018
Sold out

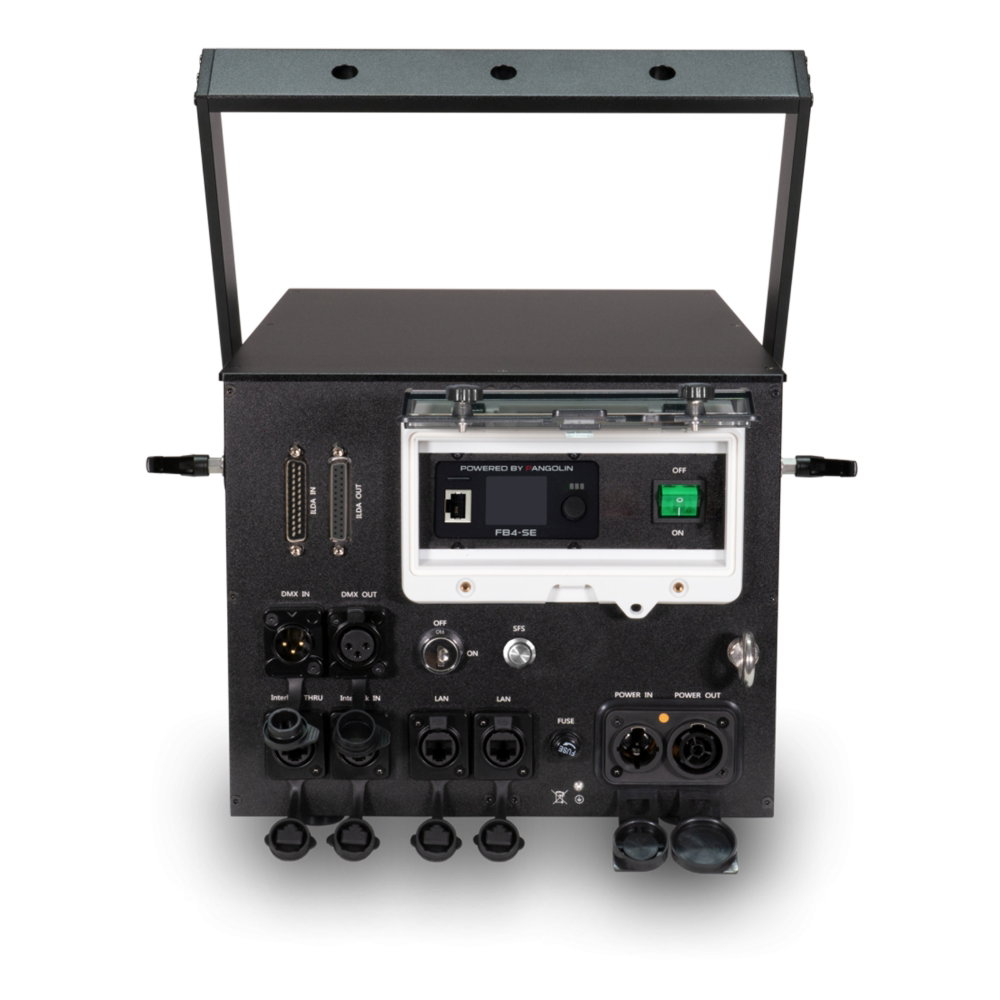

Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Laserworld CS-24.000RGB FB4
Click to enlarge

    £3,140.00 inc VAT
    £2,616.67 ex VAT

    Out of stock

    Out of Stock
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Laserworld CS-24.000RGB FB4 is a 24W full-colour pure diode laser system aimed at clubs, large indoor venues and touring productions. The integrated Pangolin FB4 interface gives you DMX, Art-Net, ILDA and standalone show playback, plus full computer control via QuickShow or BEYOND.

    Total Power
    24,000 mW
    RGB diode
    Scan Speed
    30 kpps
    @ 8 degrees
    Scan Angle
    Up to 50 degrees
    Control
    FB4
    DMX / Art-Net / ILDA
    Laser Safety

    This is a Class 4 show laser. UK use requires a competent operator, an LVD-compliant install and risk assessment. Audience scanning requires additional measures and a qualified LSO.

    Features
    ✓24W guaranteed total output (5.5W red / 6.5W green / 12W blue)
    ✓Pure diode RGB sources for stable colour and long life
    ✓Integrated Pangolin FB4 interface
    ✓DMX, Art-Net, ILDA and standalone modes
    ✓QuickShow and BEYOND software compatible
    ✓Up to 30 kpps scan speed at 8 degrees
    ✓Maximum scan angle up to 50 degrees
    ✓Suited to large clubs, festivals and arena productions
    Specifications
    Total power 24,000 mW guaranteed
    Red 5,500 mW / 638 nm
    Green 6,500 mW / 520 nm
    Blue 12,000 mW / 450 nm
    Scan speed 30 kpps @ 8 degrees
    Scan angle Up to 50 degrees
    Beam diameter Approx. 6 mm
    Beam divergence 1.3 mrad
    Control FB4 (DMX, Art-Net, ILDA, standalone)
    Software QuickShow / BEYOND compatible
    Laser class Class 4

    More Information

    • 24'000mW RGB pure diode laser system
    • Pangolin FB4 interface
    • DMX / ArtNet controllable
    • Stand-alone mode
    • Computer controllable via FB4 interface (requires QuickShow or BEYOND software)
    • Basic graphics capability - 30kpps @ 8° scanners
    • Analog modulation

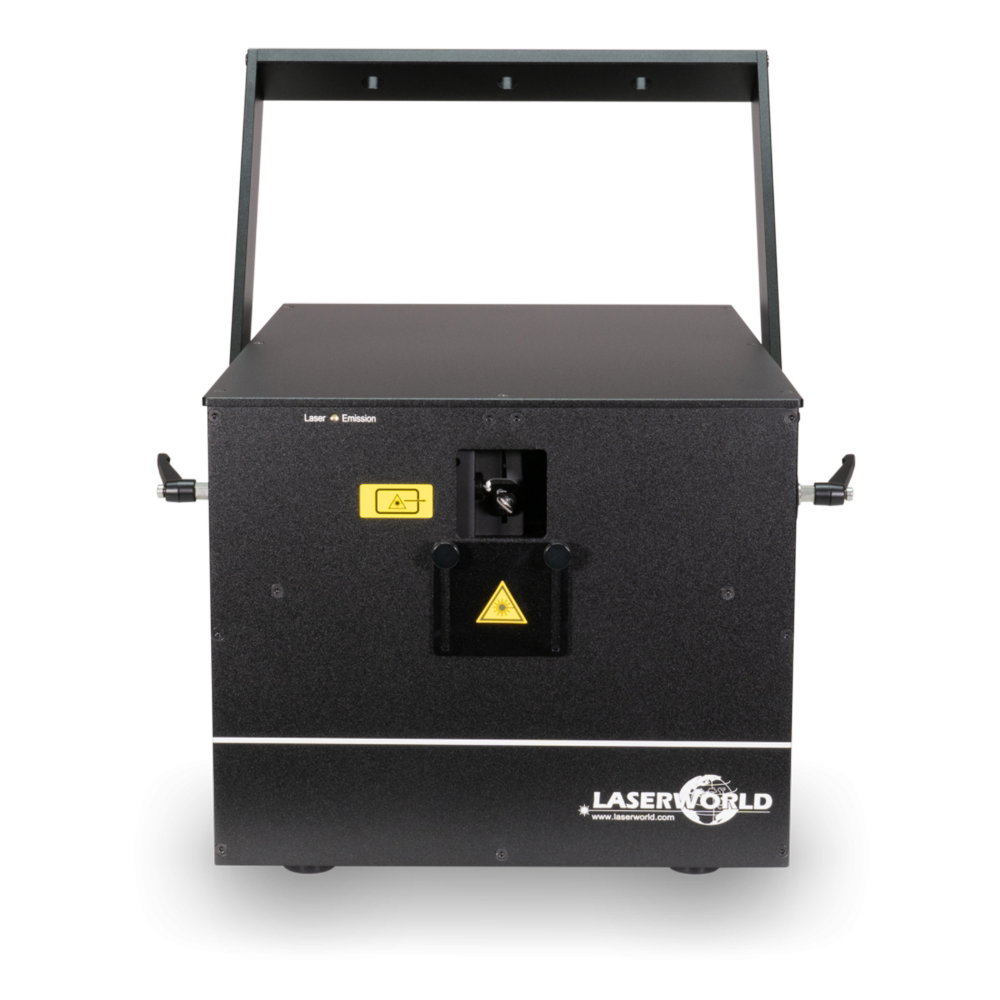

    • Laser beam masking plate on front panel

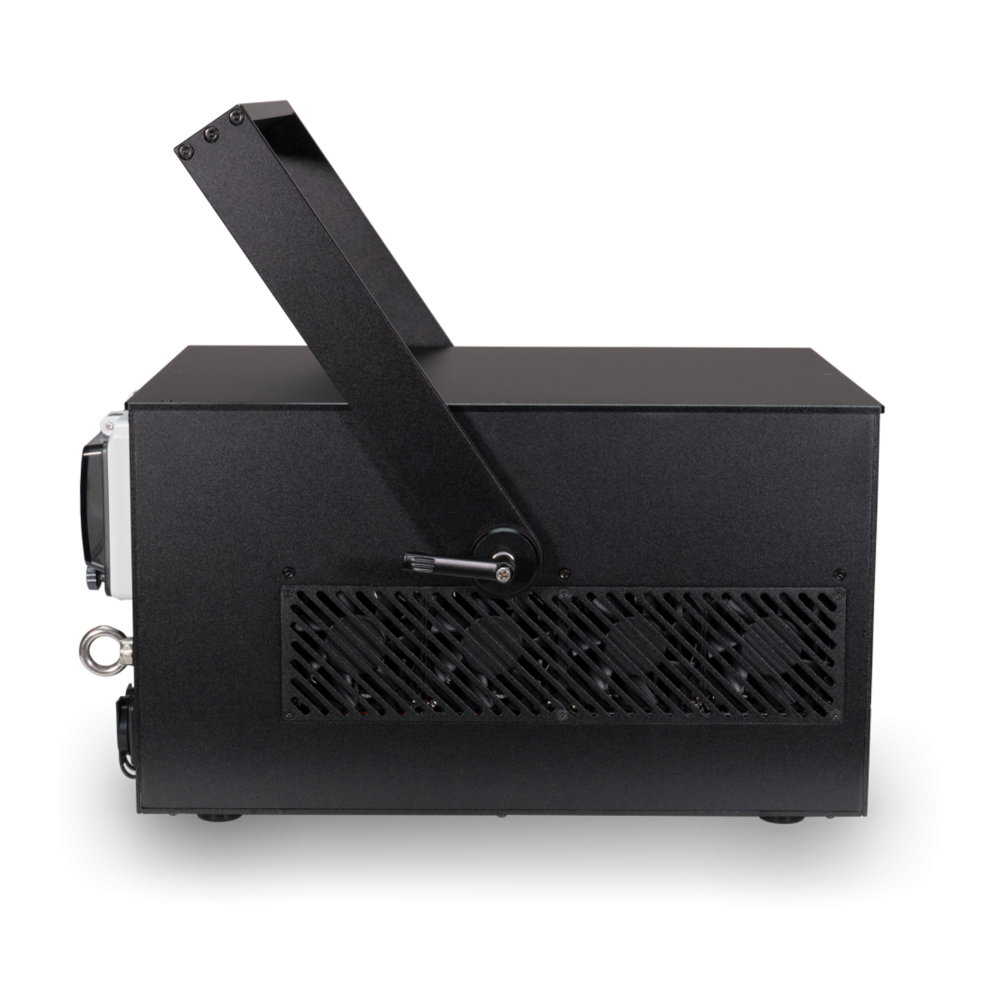

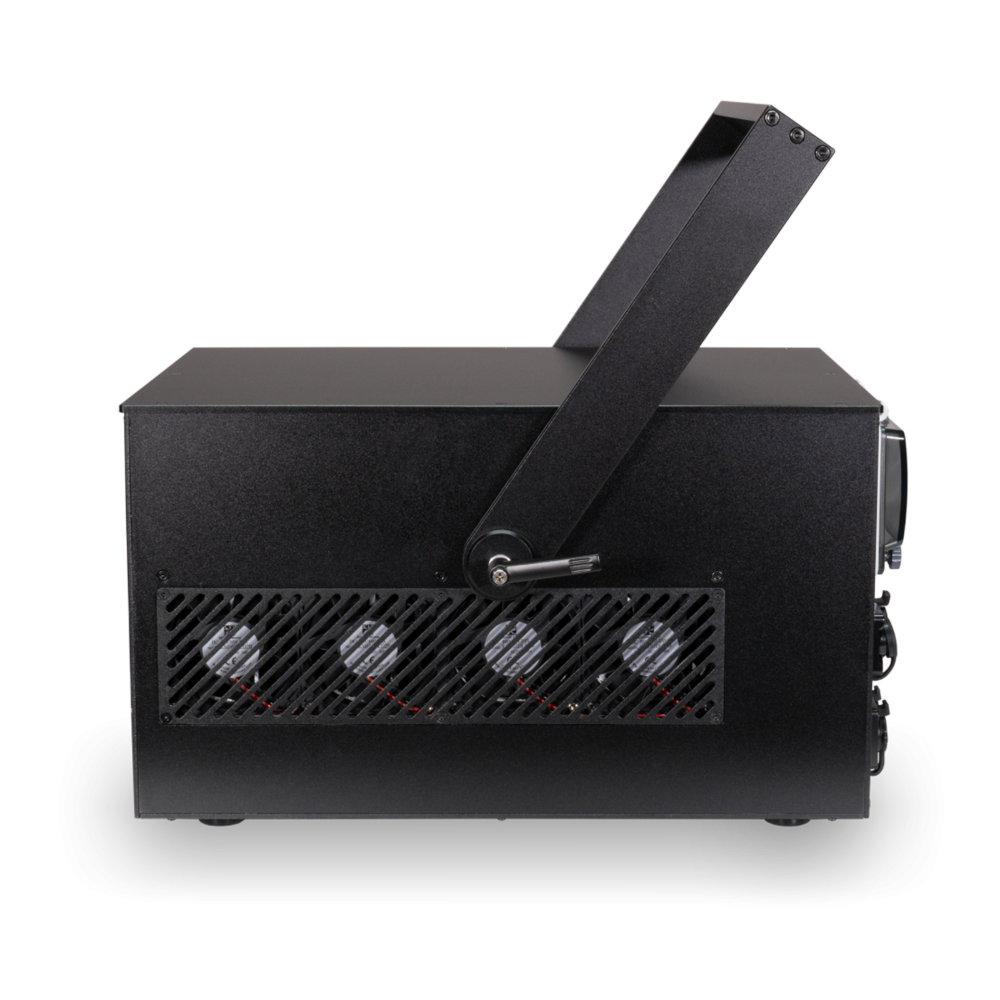

    • 360° mounting bracket
    • IP54 enclosure

    Manuals & Downloads

    PDFManuals & Instructions: LW0018_ManualPDF
    PDFManuals & Instructions: LW0017_DatasheetPDF
