Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO

SKU: CONN379

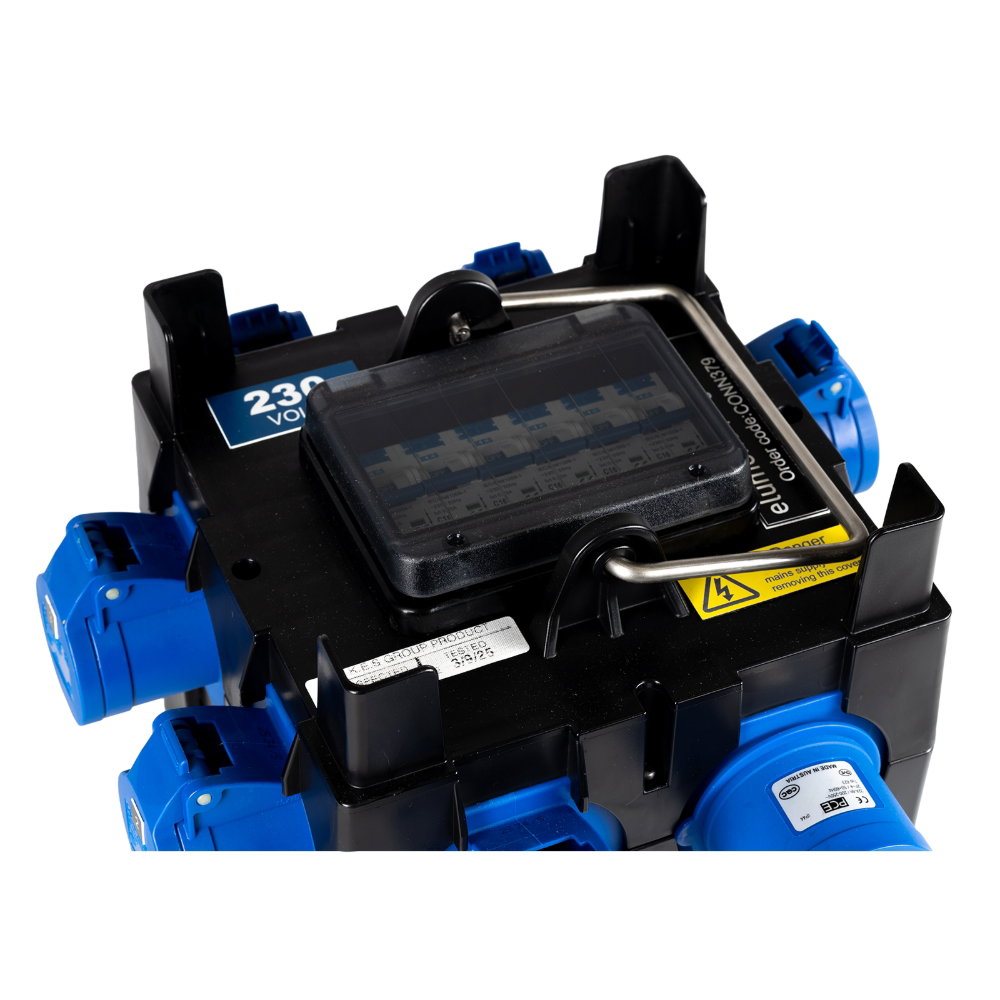

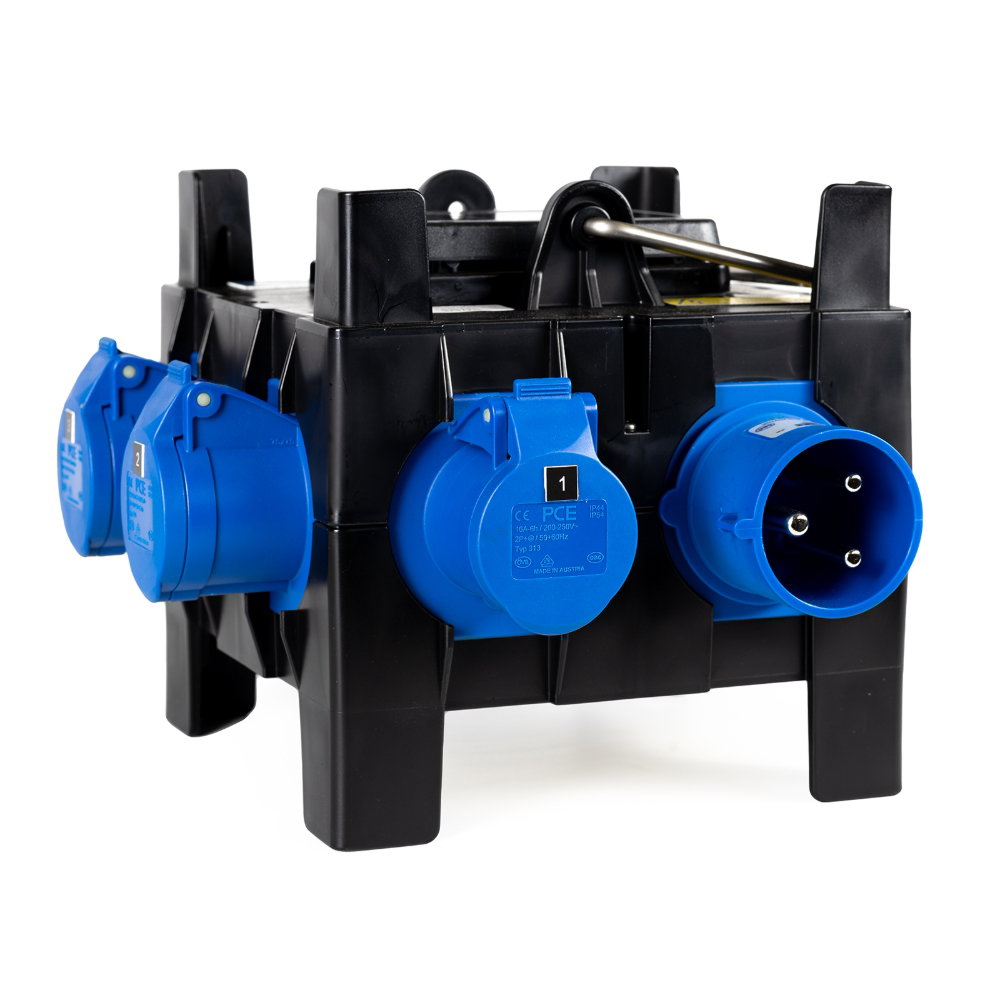

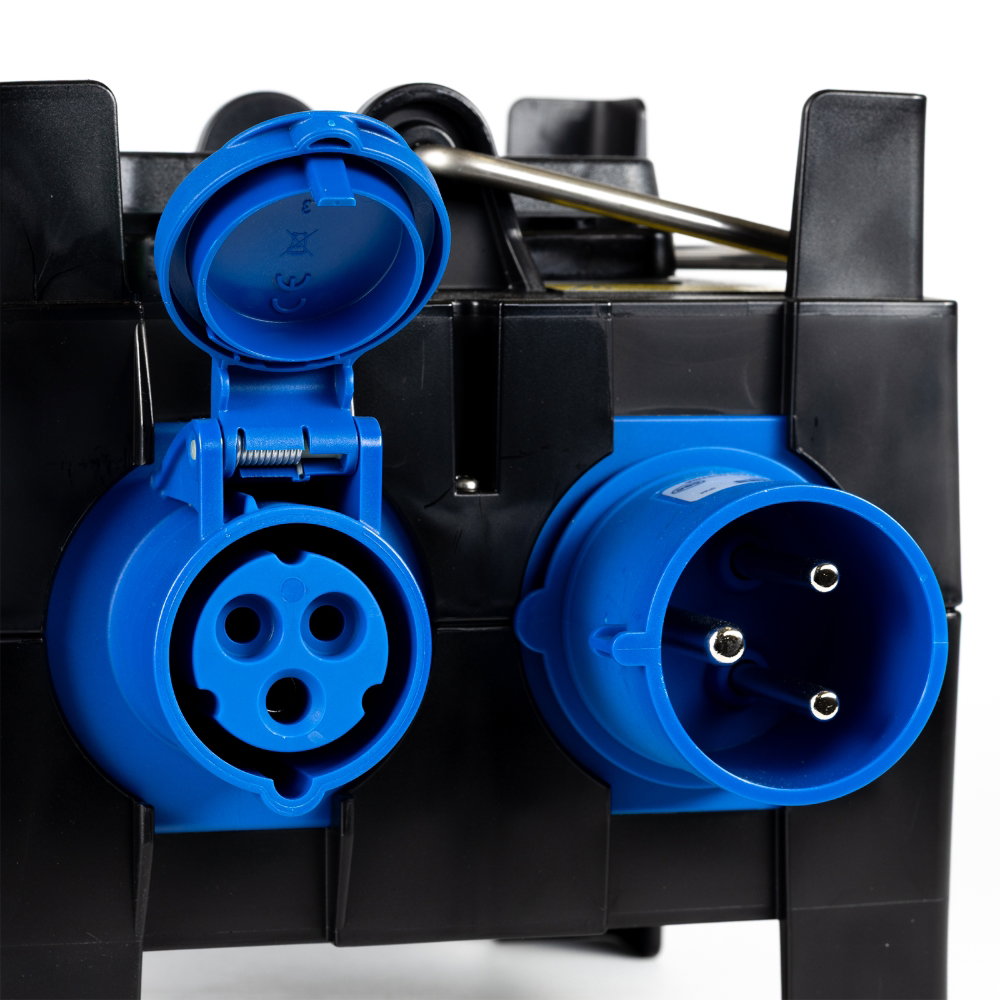

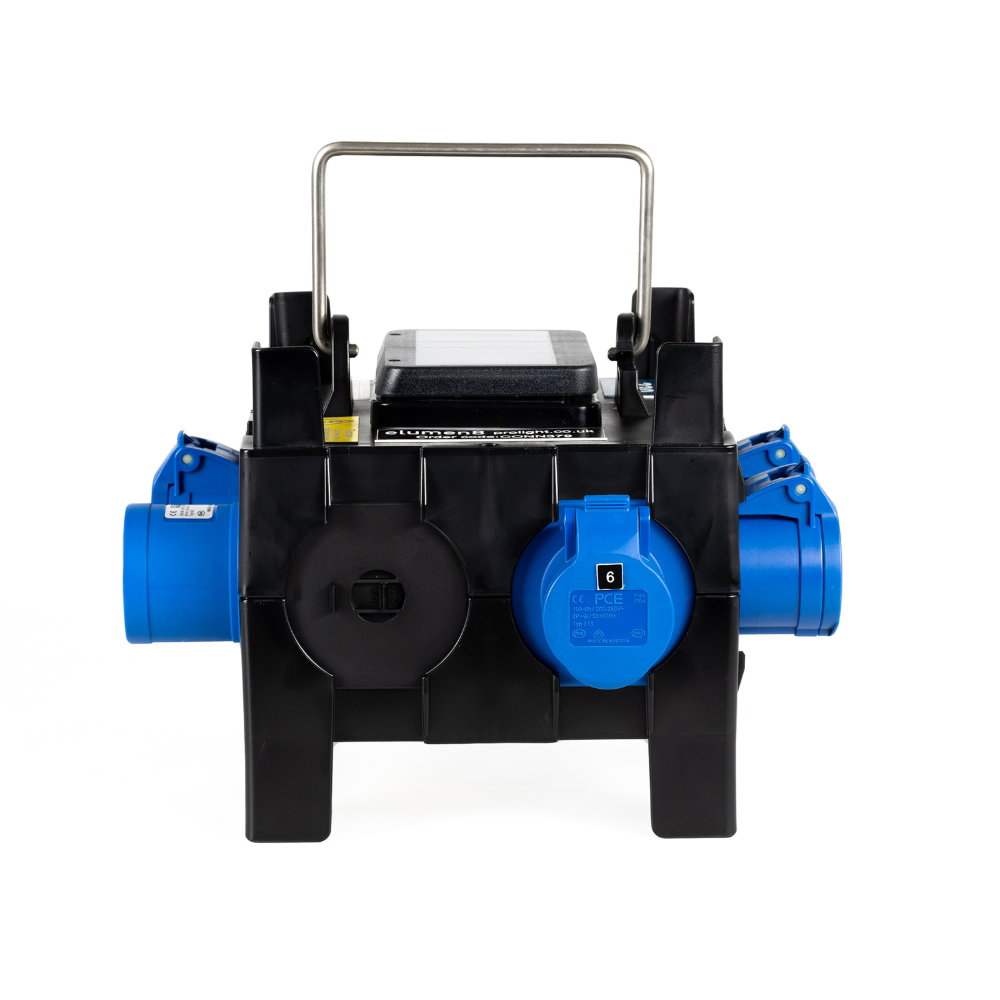

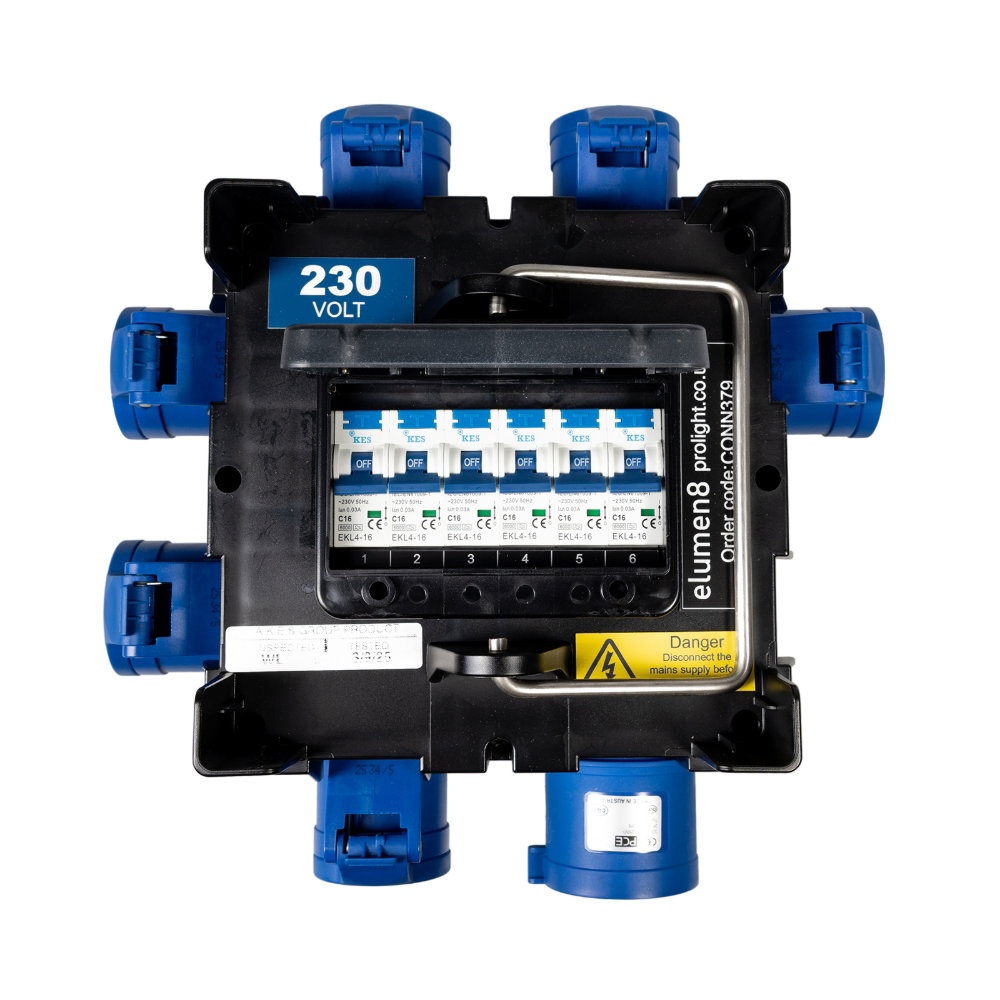

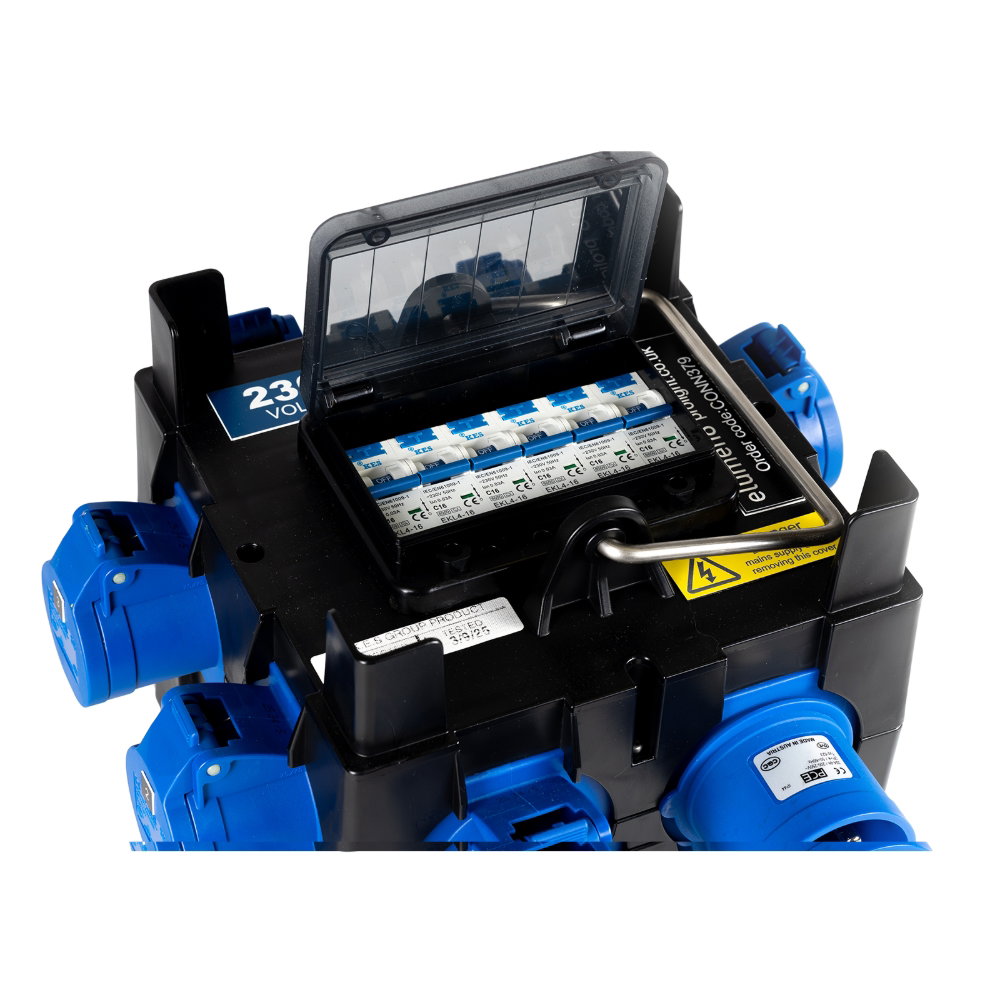

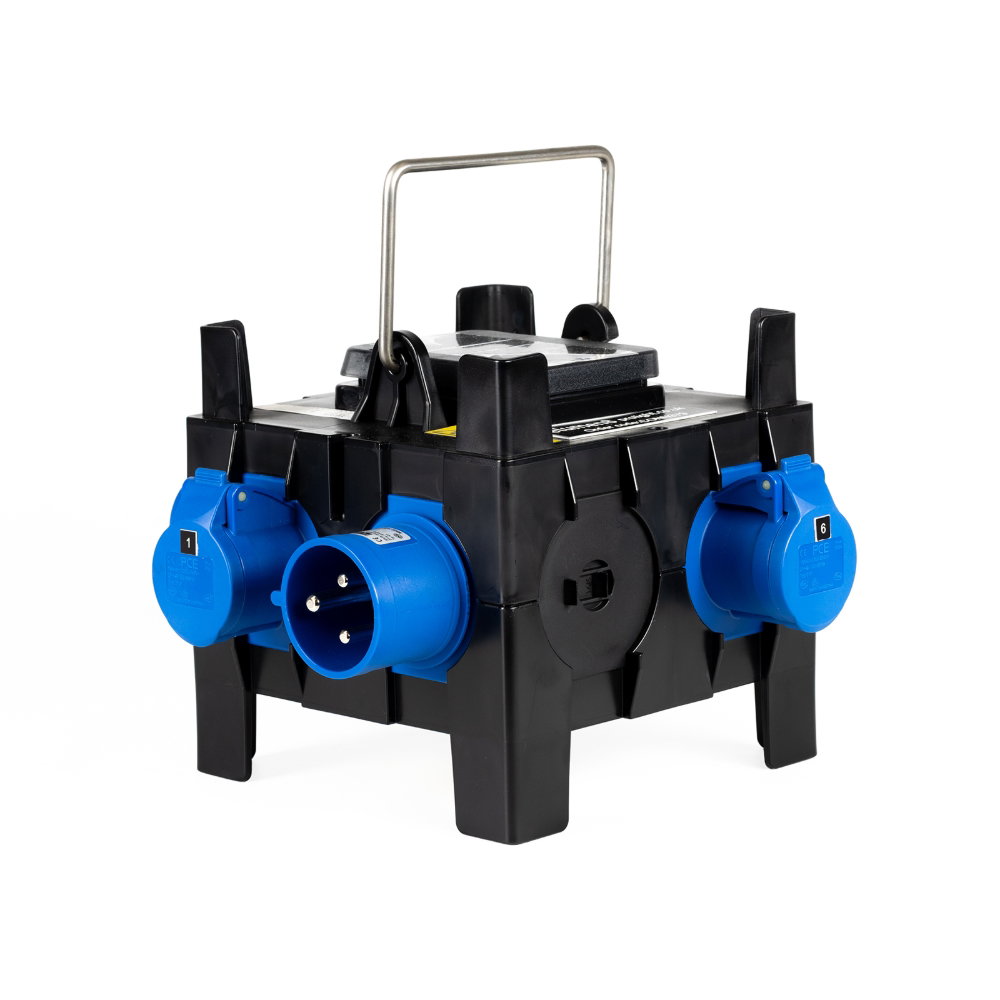

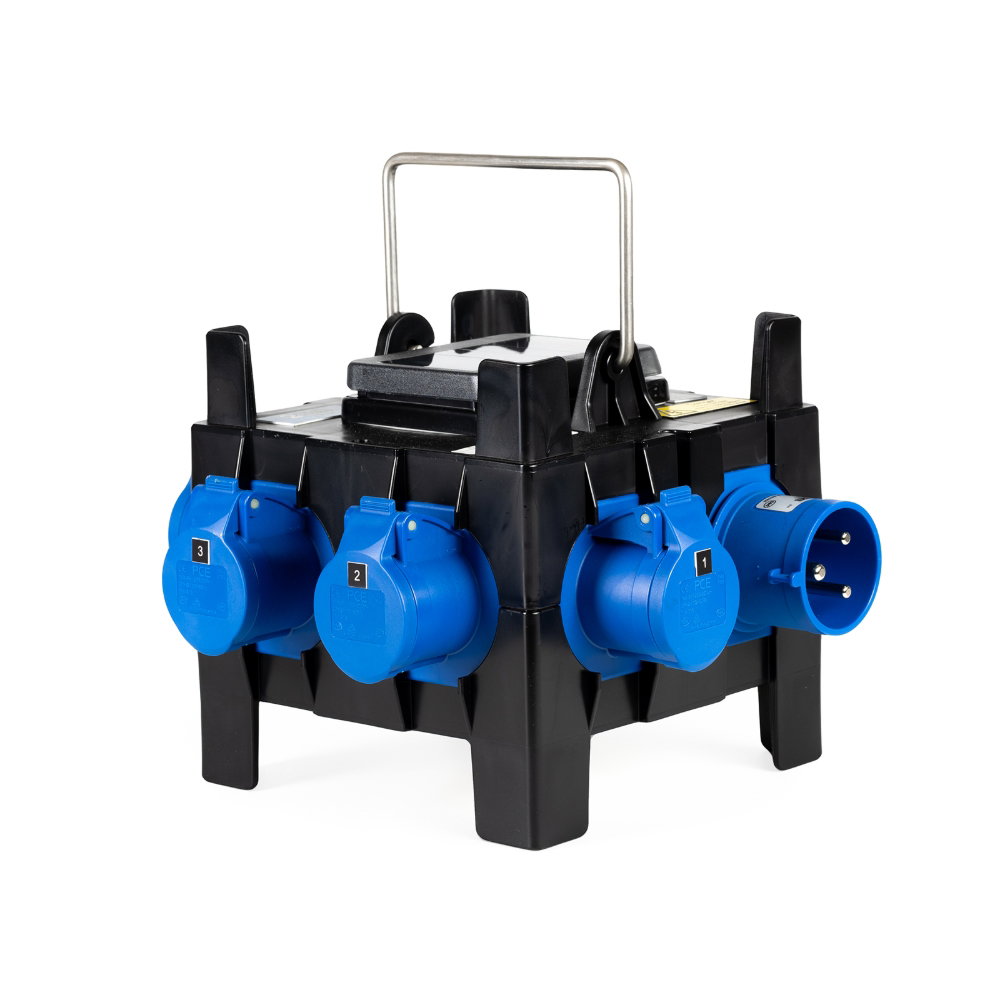

Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Elumen8 IMST Distribution Box 32A 240V In, 6 x 16A RCBO
Click to enlarge

    £630.00 inc VAT
    £525.00 ex VAT

    9 in stock

    Order in 18h 18m 32s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Elumen8 IMST Distribution Box takes a 32A 3-phase 415V input and breaks it out to six 16A single-phase outlets, each individually protected by a 30mA type C 2-pole RCBO. Compact and stackable, this is the workhorse mid-size distro for hire stock, club installs and corporate event power.

    Input
    32A 3PH
    415V 5-pin

    Outputs
    6 x 16A
    230V 2P+E

    Protection
    30mA RCBO
    Type C, per output

    Weight
    2.9kg
    IP44

    Features
    ✓32A 3-phase input via 5-pin CEE inlet
    ✓Six 16A 230V 2P+E outputs, two per phase
    ✓16A 30mA type C 2-pole RCBO on every output
    ✓Shock-resistant polyamide housing with steel carry handle
    ✓Clear MCB window over six modules for fast fault checks
    ✓Stackable IP44 design weighing only 2.9kg

    Specifications
    Input 32A 240/415V 50/60Hz 3P+N+E (5-pin)
    Outputs 6 x 16A 230V 2P+E IP44
    Output protection 6 x 16A 30mA type C 2-pole RCBO
    Housing Shock-resistant polyamide
    Protection rating IP44
    Dimensions 196 x 285 x 290mm
    Weight 2.9kg

    More Information

    • Handy, robust and lightweight distribution box made of shock-resistant polyamide
    • High-grade steel folding carry handle
    • Number of modules: 6
    • IP44 rated
    • Stackable design
    • Made in the EU
