Audio Technica BP3600 Immersive Audio Microphone

SKU: BP3600
Audio Technica BP3600 Immersive Audio Microphone
Audio Technica BP3600 Immersive Audio Microphone
Audio Technica BP3600 Immersive Audio Microphone
Audio Technica BP3600 Immersive Audio Microphone
Audio Technica BP3600 Immersive Audio Microphone
Click to enlarge

    £4,505.00 inc VAT
    £3,754.17 ex VAT

    Usually delivered in 2–3 working days
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Audio-Technica BP3600 is an eight-channel immersive audio microphone designed for capturing three-dimensional sound beds at sporting events, concerts, festivals and film sets. Its near-coincident array of eight hypercardioid capsules arranged in a cube formation produces discrete, well-separated signals that integrate directly into immersive audio codecs such as MPEG-H 3D Audio without further processing.

    Channels
    8

    Capsule Size
    12 mm
    Hypercardioid

    Capsule Spacing
    15 cm

    Output
    16-pin LEMO
    to 8x XLR breakout

    Included Accessories

    Supplied with everything needed for deployment:

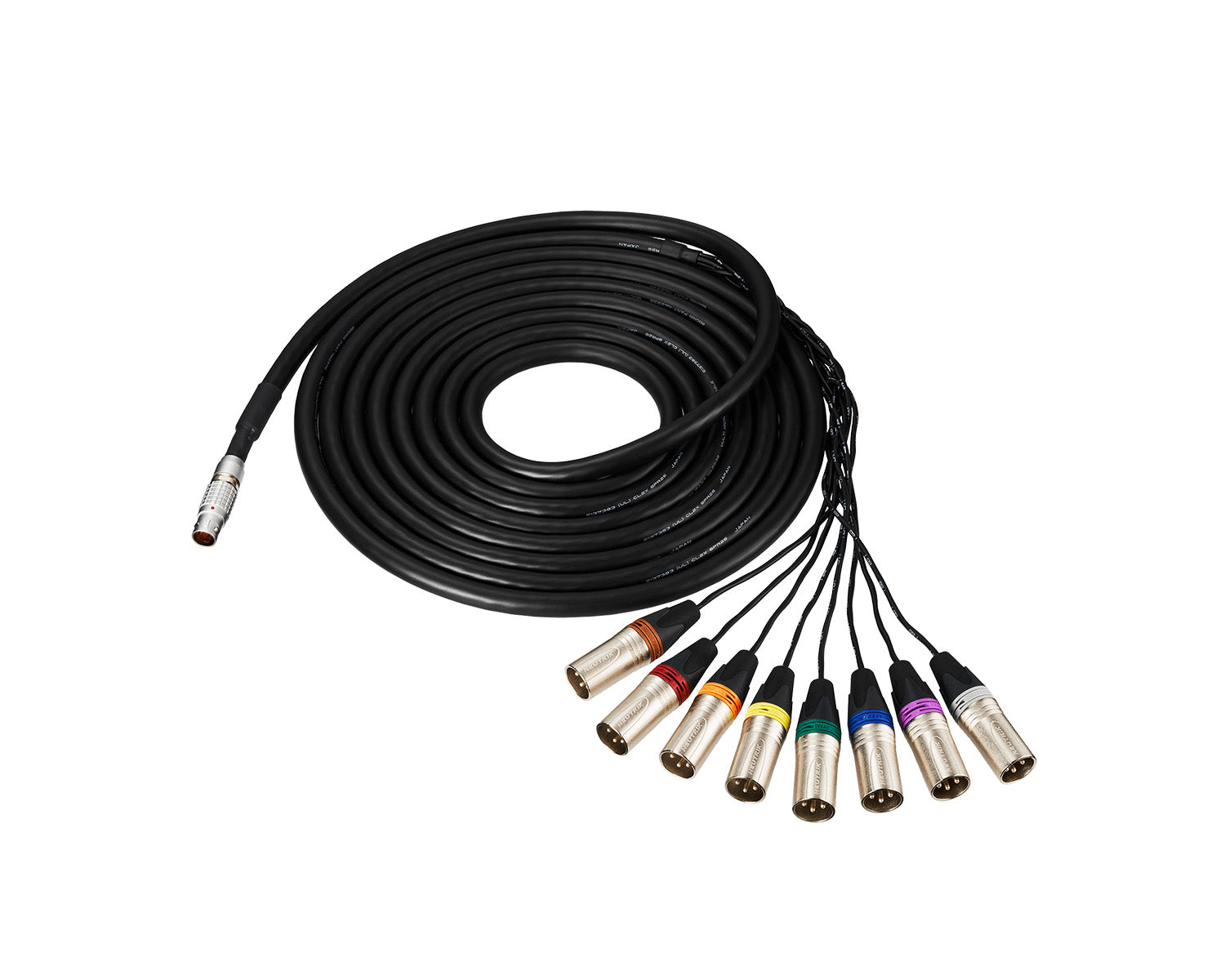

    5 m LEMO-to-XLR breakout cable (8x)
    8x AT8177 windscreens
    Isolation stand clamp
    5/8″-27 to 3/8″-16 adapter

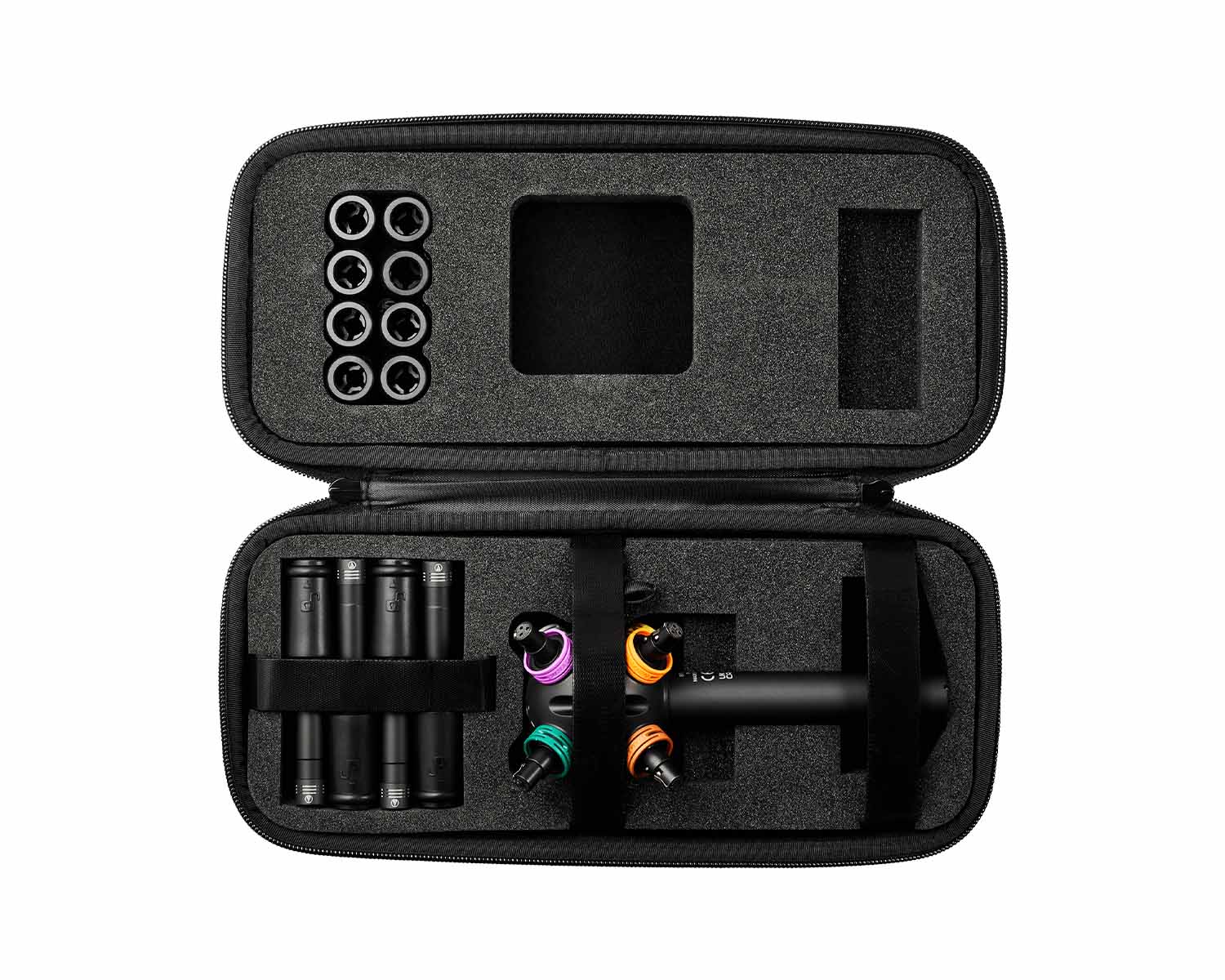

    Carrying case

    Optional Accessories

    Available separately for extended use:

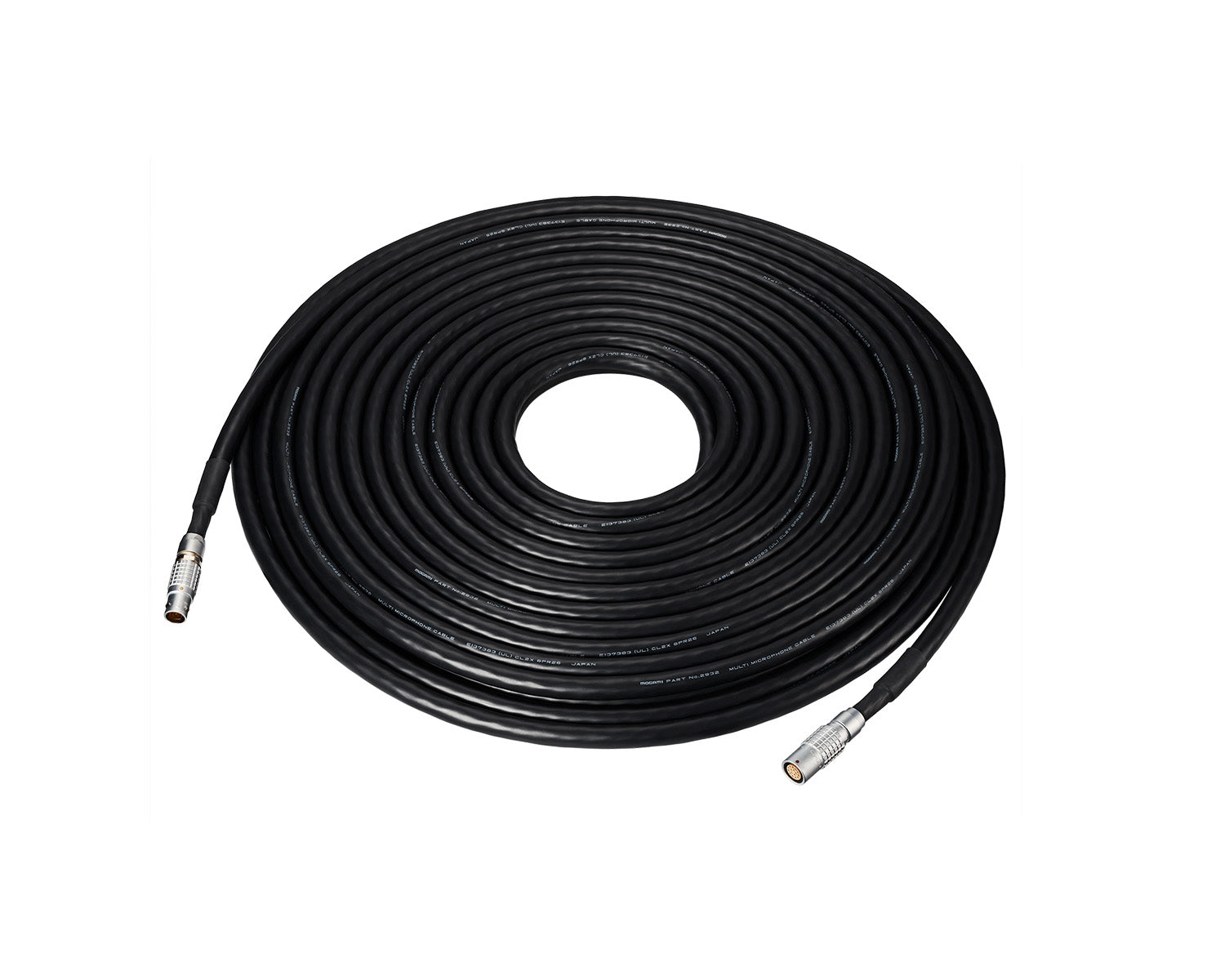

    LEMO-to-LEMO extension cables
    Rycote BBG Windshields
    Rycote BBG Windjammer covers

    Features
    ✓
    Eight 12 mm hypercardioid capsules in near-coincident cube array
    ✓
    Captures stable 3D sound beds compatible with MPEG-H 3D Audio
    ✓
    15 cm capsule separation for controlled spaciousness
    ✓
    Compact and lightweight for inconspicuous on-camera use
    ✓
    Colour-coded and numbered channel indicators on TA3F connectors
    ✓
    Water protection caps on microphone connectors
    ✓
    Safety ring for overhead suspension above audiences
    ✓
    Quick disassembly for transport in included carrying case

    Specifications
    Type Immersive audio microphone (8-channel array)
    Capsules 8x 12 mm hypercardioid condenser
    Capsule Spacing 15 cm (near-coincident cube)
    Mic Assembly Length 88 mm (3.5″) each
    Mic Connectors TA3F
    Output Connector 16-pin LEMO
    Breakout Cable 5 m LEMO-to-XLRM (x8) included
    Stand Mount Isolation clamp with 5/8″-27 to 3/8″-16 adapter

    More Information

    • The BP3600 immersive audio microphone is a practical, state-of-the-art broadcast solution for capturing ambient sound beds at sporting events, movie sets, concerts, festivals and more
    • Captured audio image can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing
    • 8 microphone assemblies attach and detach quickly from the main unit for easy setup and teardown
    • 12 mm hypercardioid capsules keep the microphone small for discreet placement, while providing low diffuse-field correlation between signals
    • Colour-coded and numbered rings provide easy channel reference for each of the eight microphones
    • Water protection caps guard TA3F microphone connectors against inclement weather
    • A safety ring provides additional security when suspending the microphone above spectators in grandstands, stadiums or auditoriums
    • 16-pin LEMO output connector is situated at the end of the microphone’s grip for easy attachment of the included breakout cable or extension cables (available separately)
    • Includes AT8172 windscreen (x 8), mic isolation stand clamp, 5/8"-27 to 3/8"-16 threaded adapter, soft carrying case
    • Optional accessories – Rycote BBG Windshields, Rycote BBG Windjammers, and 20 m (16.4' and 65.6') LEMO-to-LEMO extension cables – are available separately
    • Requires 48V DC phantom power per channel
