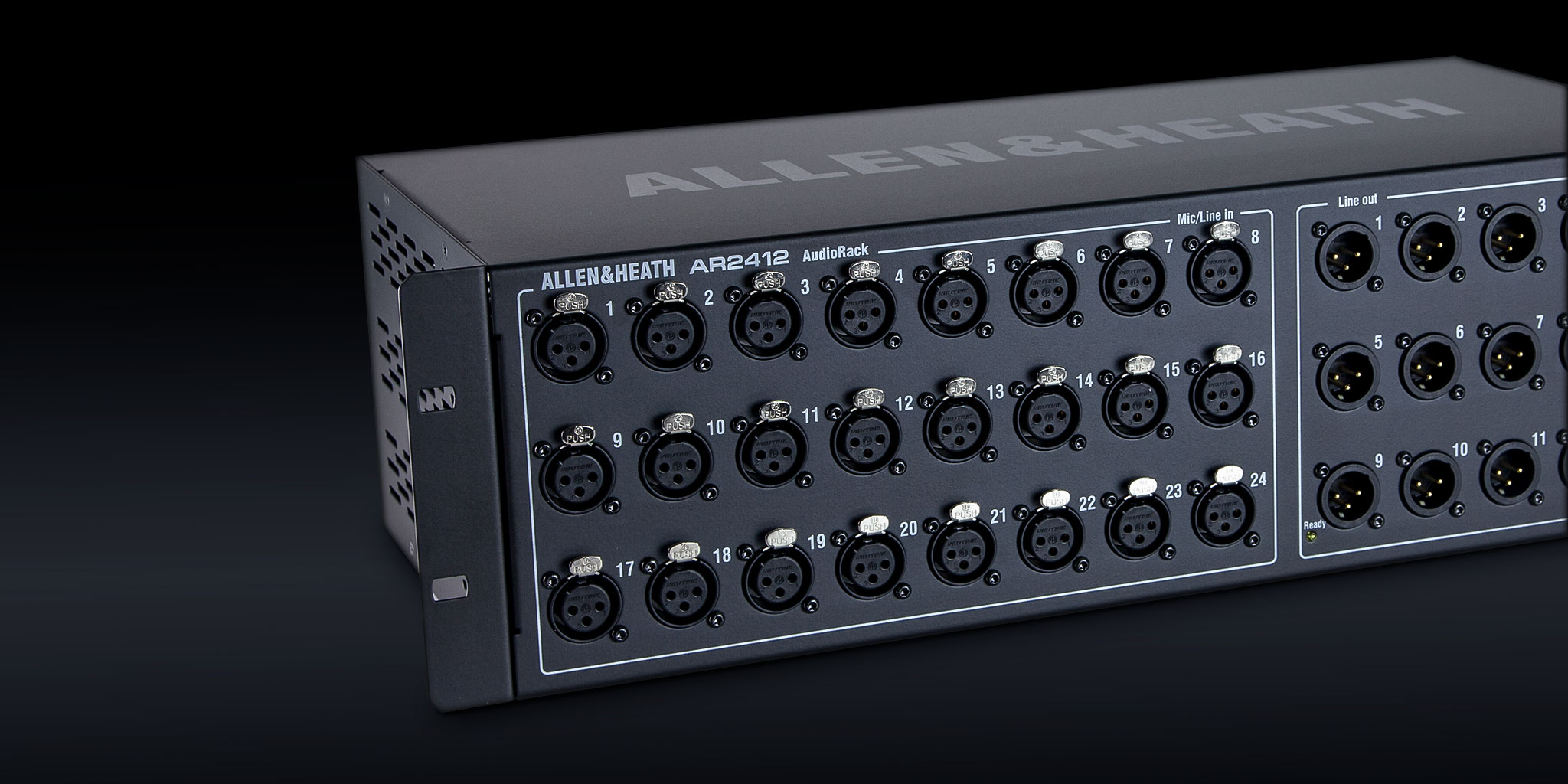

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM audio matrix processors.
Inputs
24 Mic Preamps
+60dB of gain with −20dB pad for line level sources.
Outputs
12 Line Outs
Balanced, relay protected line outputs on XLR.
Ports
Expander & Monitor
Dedicated ports for connection to an AR84 or AB168, and to the ME Personal Mixing System.
Setup
Plug-and-Play
No configuration required — just connect to your mixer. Firmware updates handled automatically by the host.
Flexibility
Put It Where You Need It
The AR2412 can be placed up to 100m away from the mixer for maximum flexibility of positioning, connecting over a single Cat5 cable to the mixer or upstream expander.

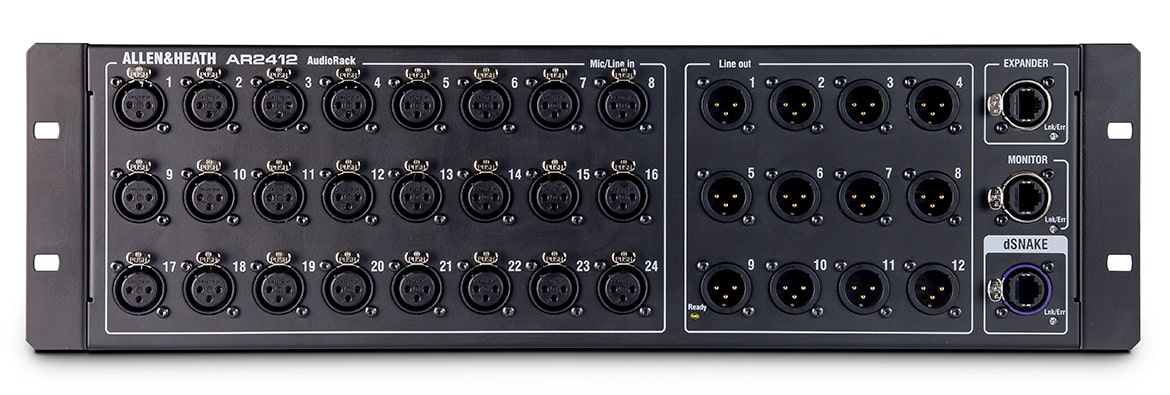

A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system. Integrated rack ears allow mounting in a standard 3U 19" rack space.
Personal Mixing
Connect to the ME Personal Mixing System
The AR2412 can connect directly to Allen & Heath's ME Personal Mixing System via the Monitor port, giving musicians the power to control their own monitor mix — no engineer required.
Compatible With
AR2412 Specifications
- 24 × mic preamps (+60dB gain, −20dB pad)
- 12 × balanced relay protected XLR line outputs
- Dedicated expander port (AR84 / AB168)
- Dedicated monitor port (ME Personal Mixing System)
- Cat5 connection — up to 100m from host mixer
- 48kHz operation
- 3U 19" rack mountable
- Plug-and-play — no configuration required
- Automatic firmware updates via host mixer
- Compatible with Avantis, SQ, Qu Classic, AHM
