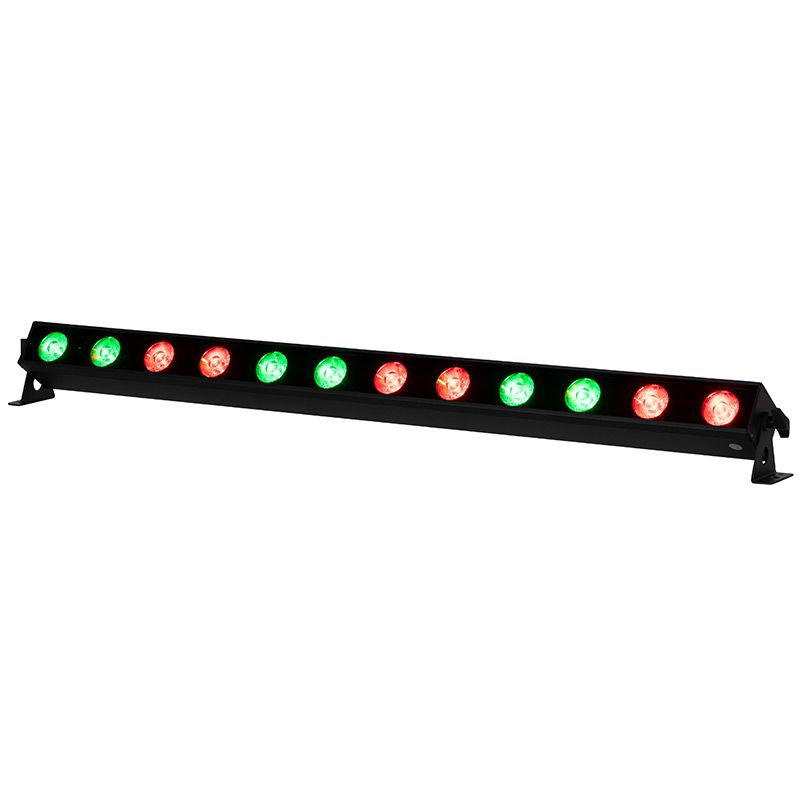

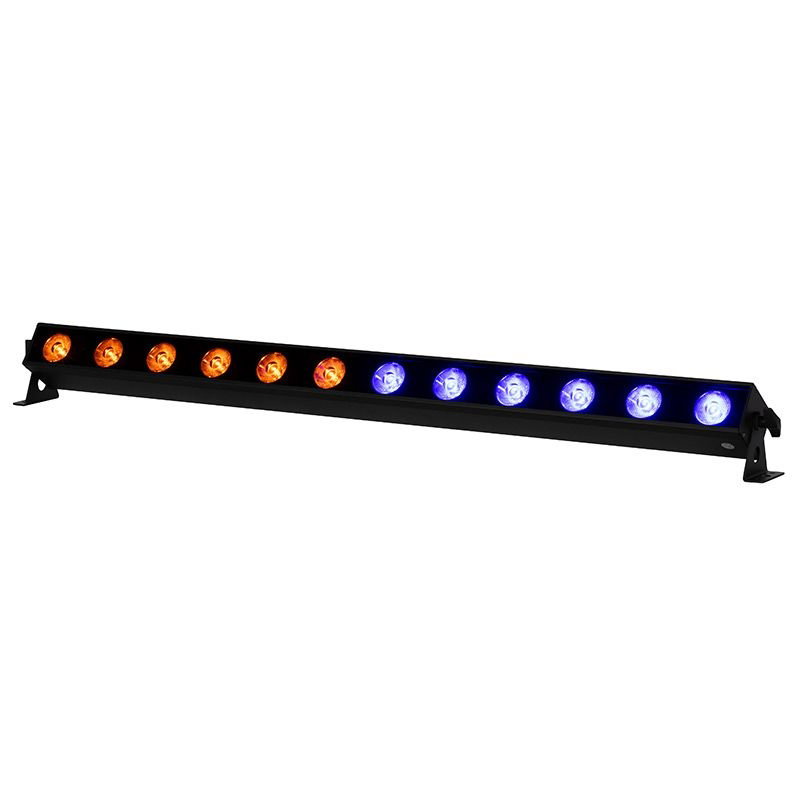

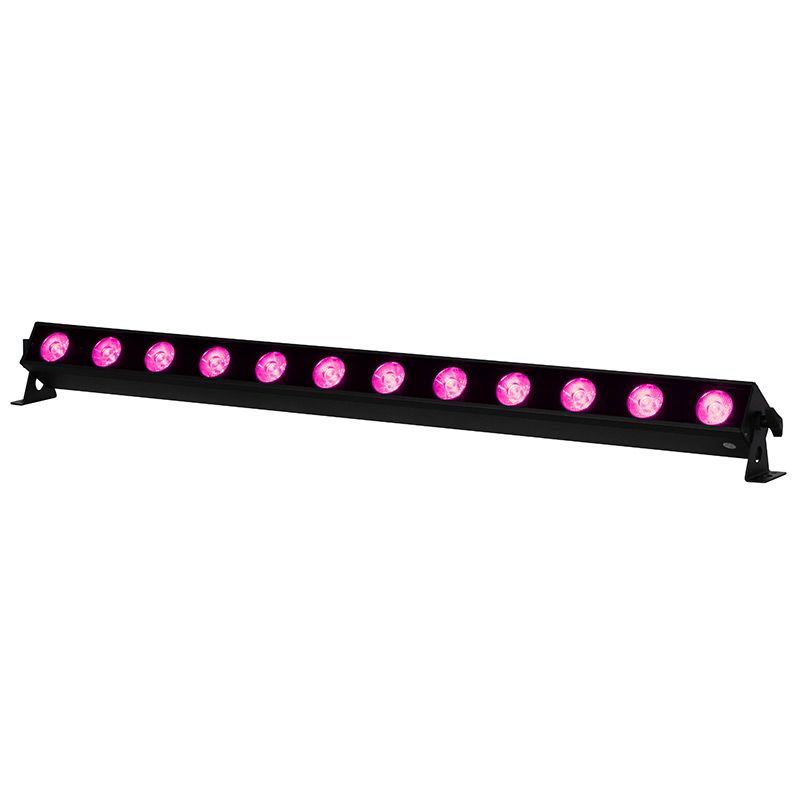

The ADJ UBL12H is a 1-metre professional HEX LED linear batten from ADJ’s Ultra series, built around twelve 20-Watt six-in-one LEDs (red, green, blue, amber, lime and UV) for rich colour mixing and linear colour temperature control from 2,300K to 9,900K. The added lime chip pushes CRI above 90, making it well suited to broadcast, theatre and high-end event work.
LEDs
12 × 20W
RGBAL + UV
CCT Range
2,300 – 9,900K
linear control
Beam Angle
17°
40° with optional lens
CRI
> 90
broadcast-grade
Features
✓12 x 20W six-in-one HEX LEDs (RGBAL + UV)
✓Linear colour temperature control 2,300 – 9,900K
✓CRI > 90 thanks to the added lime chip
✓85.5mm pixel pitch with horizontal magnetic alignment for continuous runs
✓17° native beam, expandable to 40° with optional UBL912 lens kit
✓1.9kHz LED refresh rate — flicker-free on camera
✓7 DMX channel modes, 64 built-in colour macros
✓DMX, RDM, sound-active, auto and manual modes

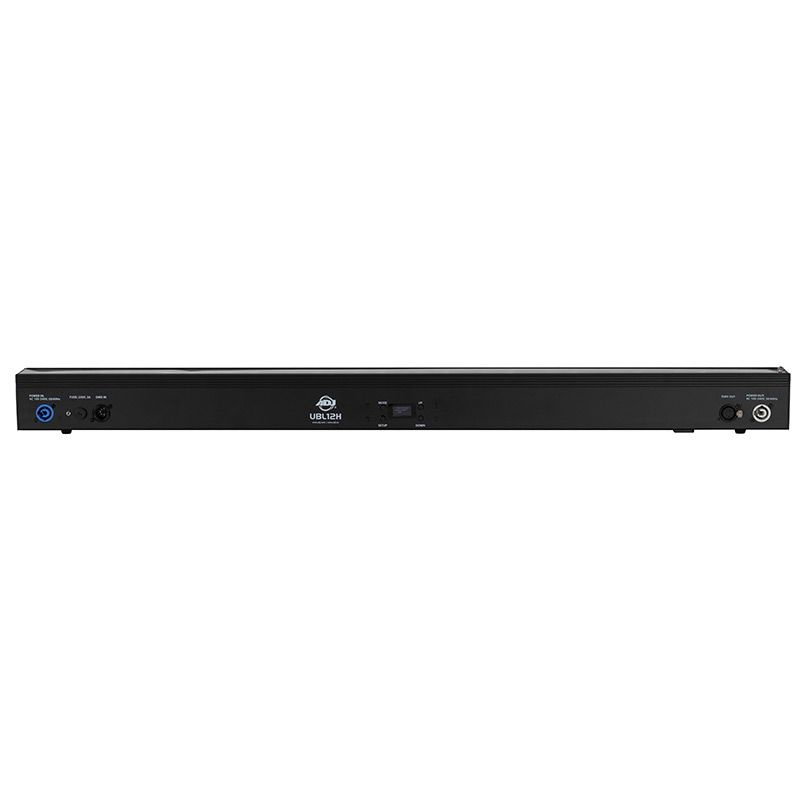

✓OLED display with 4-button menu
✓Power daisy-chain up to 32 fixtures @ 230V

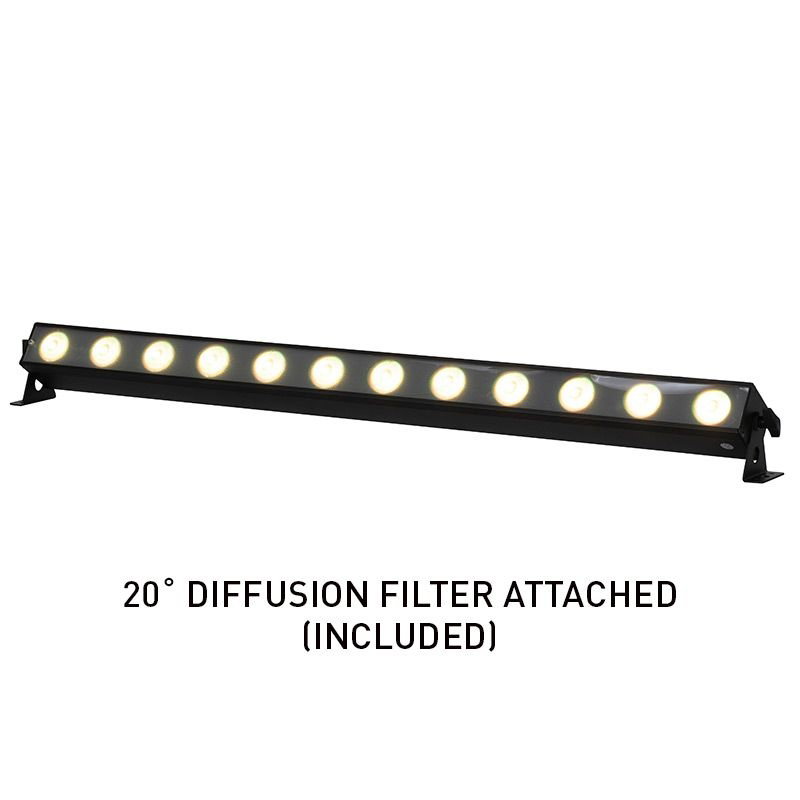

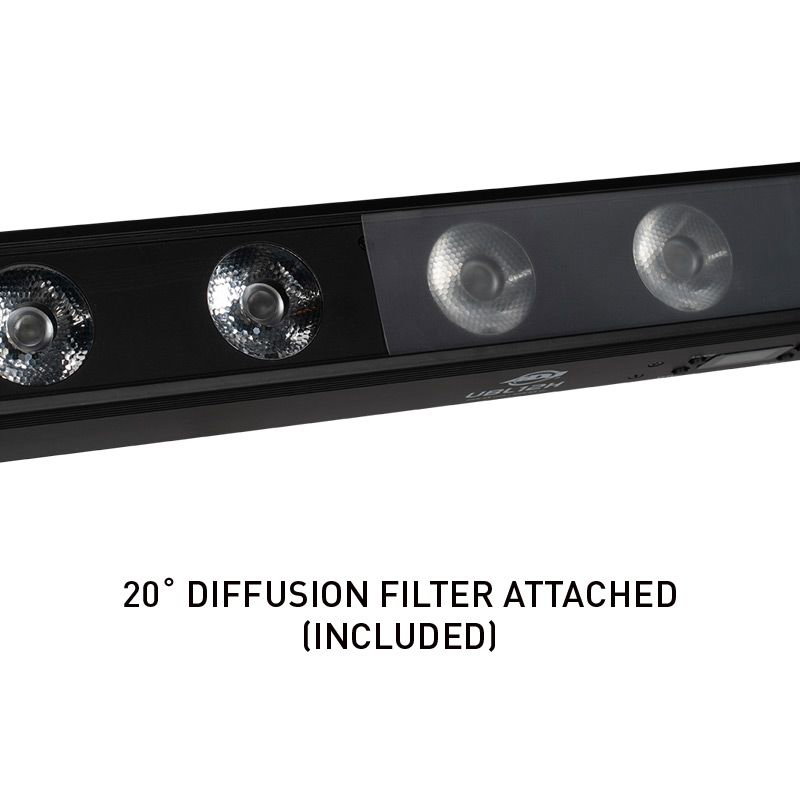

✓Supplied with UC-IR24 remote and 20° diffusion filter
✓Floor and truss mounting brackets included
Specifications
| Length | 1 metre |
| LED source | 12 x 20W RGBAL + UV HEX |
| CCT range | 2,300K – 9,900K |
| CRI | > 90 |
| Beam angle | 17° (40° with optional lens kit) |
| Pixel pitch | 85.5mm |
| LED refresh rate | 1.9kHz |
| DMX channel modes | 7 |
| Control | DMX-512, RDM, sound-active, auto, manual |
| Colour macros | 64 built-in |
| IP rating | IP20 (indoor use) |
| Approvals | cETLus, CE, FCC |
| Includes | Locking IEC power cord, UC-IR24 remote, 20° diffusion filter, floor/truss brackets |
