ADJ Element H6 Pak Chr Battery Uplighter Kit

SKU: ADJ1226100425
Sold out
ADJ Element H6 Pak Chr Battery Uplighter Kit
ADJ Element H6 Pak Chr Battery Uplighter Kit
ADJ Element H6 Pak Chr Battery Uplighter Kit
Click to enlarge

    £1,890.00 inc VAT
    £1,575.00 ex VAT

    Out of stock

    Out of Stock
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

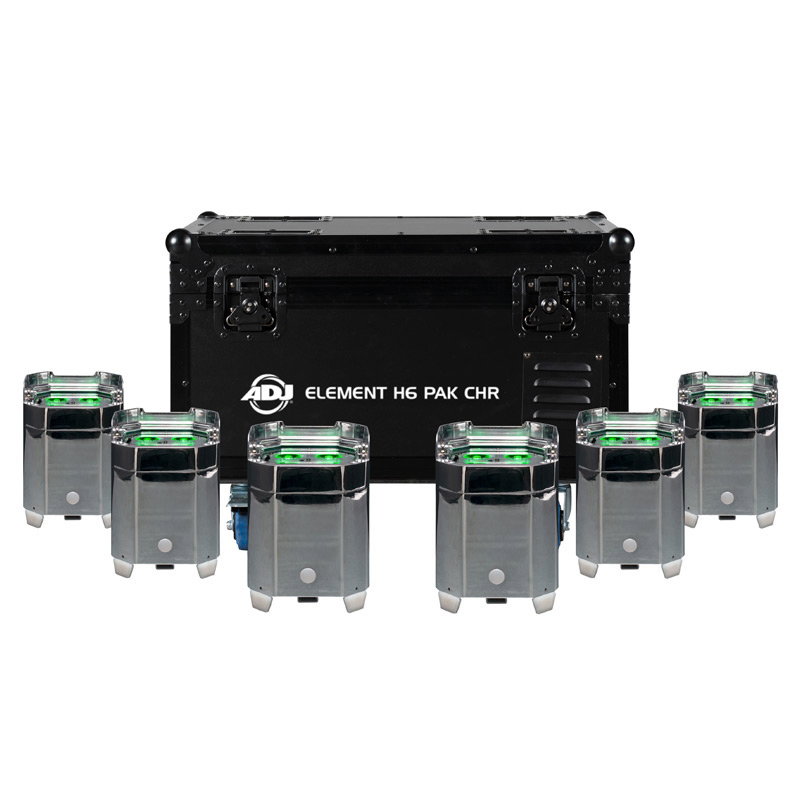

    The ADJ Element H6 Pak Chr is a complete six-fixture battery uplighting kit supplied in a charging flight case. Each IP54-rated fixture uses four 20W six-in-one RGBAW + UV LEDs through a 17.6 degree beam, with Aria X2 wireless DMX, built-in kickstand and up to 12 hours runtime in energy-saving single-colour mode. Includes the UC-IR24 wireless remote.

    Pak Contents
    6 fixtures
    case + remote
    LEDs per Fixture
    4 x 20 W
    RGBAW + UV
    Runtime
    Up to 12 h
    energy-saving mode
    Wireless DMX
    Aria X2
    IP rating
    IP54
    Features
    ✓6 x battery-powered RGBAW + UV uplighters in a charging flight case
    ✓4 x 20W six-in-one LEDs per fixture
    ✓17.6 degree beam / 28.7 degree field for stage uplighting and wall wash
    ✓1,117 lux @ 2m / 298 lux @ 4m output
    ✓Aria X2 wireless DMX on every fixture
    ✓63 built-in colour macros
    ✓Up to 6 hours runtime (12 hours in single-colour energy-saving mode)
    ✓Battery charge indicator on every fixture
    ✓Built-in kickstand for floor angling
    ✓IP54 partial dust / splash protection
    ✓Onboard charging inside the flight case

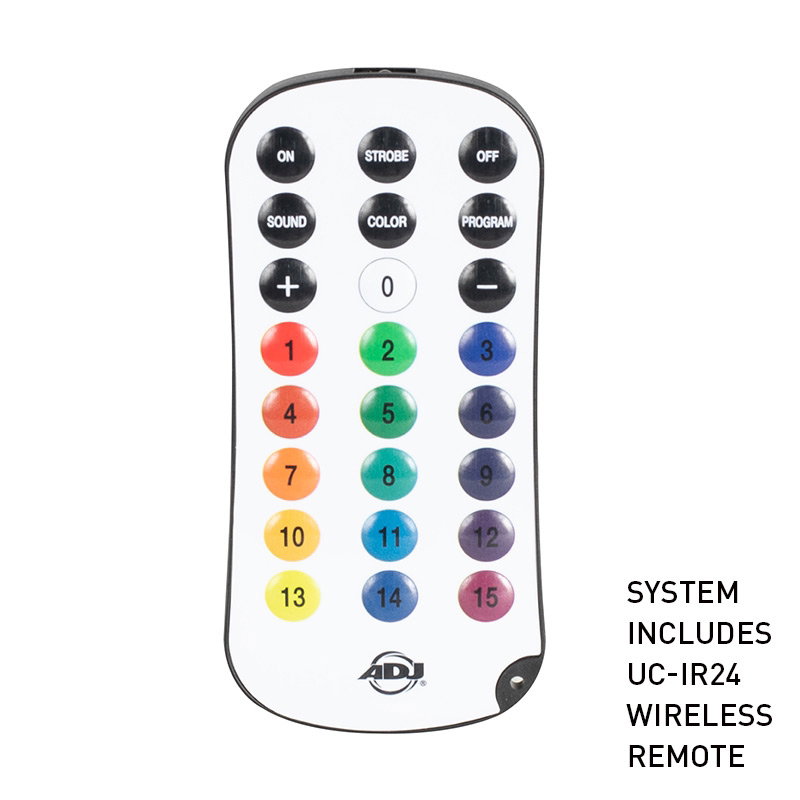

    ✓UC-IR24 wireless remote included
    Note

    IP54 covers dust and splashes from any direction – suitable for typical indoor use and short outdoor deployments under cover. For exposed outdoor work or rain, step up to an IP65-rated fixture.

    Specifications
    Pak contents 6 fixtures, charging flight case, UC-IR24 remote
    LED source 4 x 20W RGBAW + UV 6-in-1 per fixture
    Beam / field 17.6 degrees / 28.7 degrees
    Output 1,117 lux @ 2m; 298 lux @ 4m
    Runtime 6 h normal, 12 h energy-saving single colour
    Wireless DMX Aria X2
    Colour macros 63 built-in
    IP rating IP54
    Weight per fixture 2.4 kg

    More Information

    Please note: Shipping charges may apply

    Element H6 Pak includes:
    • (6) Element H IP Black Fixtures
    • (1) Element H6 FC charging Flight Case
    • (6) Mirage Q6 IPCB Charging bases and power supplies
    • (1) UCIR24 Wireless Infrared Controller
    • (1) IP65 Locking Power Cable
    Element H6 Pak Features:
    • Houses / Transports and Charges (6) Element H IP™ fixtures
    Element H6 Pak Dimensions / Weight (loaded case with 6 fixtures):
    • Length: 671mm
    • Width: 461mm
    • Vertical Height: 451mm
    • Loaded Weight: 38.4kg
    Pak Electrical / Thermal:
    • Power Input: AC100VAC~240VAC, 50/60Hz
    • IP65 Power Locking Input and Output
    • Max Power Consumption: 200 Watts
    • Power Draw: 3A max
    • Charge status indicator
    • -20°C to 45°C
    Optical:
    • 4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber White & UV)
    • Life expectancy: rated at 50,000 hrs.
    • LUX: 1117 @ 2M; 298 @ 4M
    • Beam angle: 17.6°
    • Field angle: 28.7°
    Connection:
    • Aria X2 Wireless Management System
    • DMX: Wireless DMX
    • Contact Charging system. *Charging base and power supply included
    Control:
    • Control protocol: Wireless DMX
    • Control protocol: Aria X2 Wireless Management System
    • 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 or 17 channels
    • Remote control: Aria X2 Wireless Management System, UC-IR24 (Included)
    • 5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs, & 1 colour/fade combo mode); Static Colour mode; and Aria X2 Wireless Management System
    • Remote control: Wireless DMX, UC-IR24 (Included)
    • 5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs, & 1 colour/fade combo mode); Static Colour mode; and Wireless DMX Control
    Features:
    • IP54 Rated: partial protection from dust and water splashes
    • Built-in kickstand to angle fixture when sitting on the floor
    • 4-touch button OLED display inside cover panel
    • Built-in Aria X2 wireless DMX with signal LED indicator
    • Built-in wireless DMX with signal LED indicator
    • 63 built-in Colour Macros
    • Variable RGBAW+UV colour mixing offers a smooth, seemingly unlimited colour palette - Great for Stage or Wall Washing!
    • LED pulse and strobe effect (0.2Hz-11Hz)
    • Flicker Free Operation
    • Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
    • Run all night - No duty cycle
    • Battery charge indicator on each fixture
    • Energy Save Mode
    Battery:
    • Battery Type: fixed polymer lithium battery
    • Battery Energy: 59.2WH (Watt Hours)
    • Battery Weight: 0.24 kg
    • Battery Voltage: 14.8V
    • Battery Capacity: 4000mAh (Typical Capacity)
    • Total Lithium Ion Cells: 4 pieces
    • Battery Wrap Material: PVC sleeving + highland barley paper
    • Battery Charge Time: 6 Hours
    • Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode(single colour)
    Electrical:
    • Power Draw Total (All LED's @ Full On): 20W
    • Voltage operation: DC17V
    Dimensions / Weight:
    • Dimensions (LxWxH): 140 x 140 x 190.5mm
    • Weight: 2.4kg
    Certifications:
    • IP54 Outdoor rated

    Manuals & Downloads

    PDFManuals & Instructions: adj_element_h6_pak_-_user_manual_7.pdfPDF
