ADJ Data Distro 6 DMX / RDM Splitter

SKU: ADJ1321000084
ADJ Data Distro 6 DMX / RDM Splitter
ADJ Data Distro 6 DMX / RDM Splitter
ADJ Data Distro 6 DMX / RDM Splitter
ADJ Data Distro 6 DMX / RDM Splitter
ADJ Data Distro 6 DMX / RDM Splitter
ADJ Data Distro 6 DMX / RDM Splitter
Click to enlarge

    £135.00 inc VAT
    £112.50 ex VAT

    15 in stock

    Order in 18h 23m 22s for delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

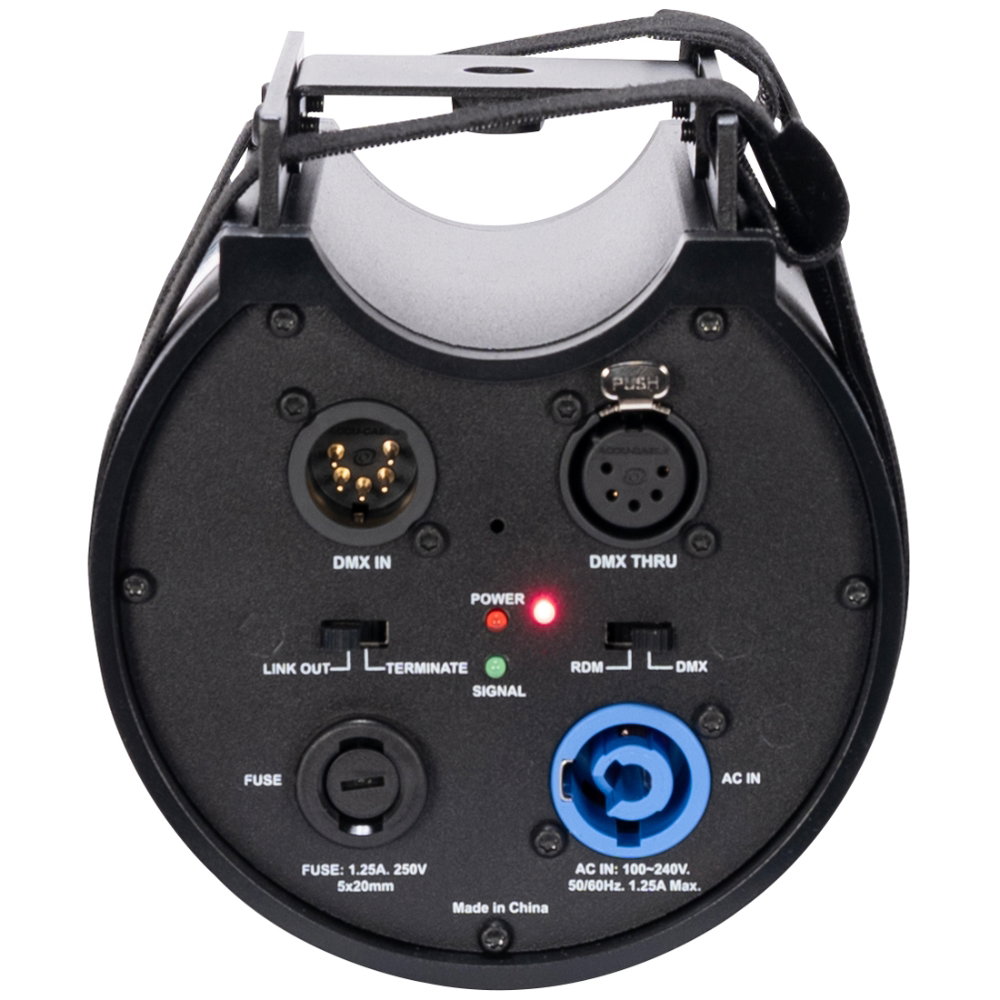

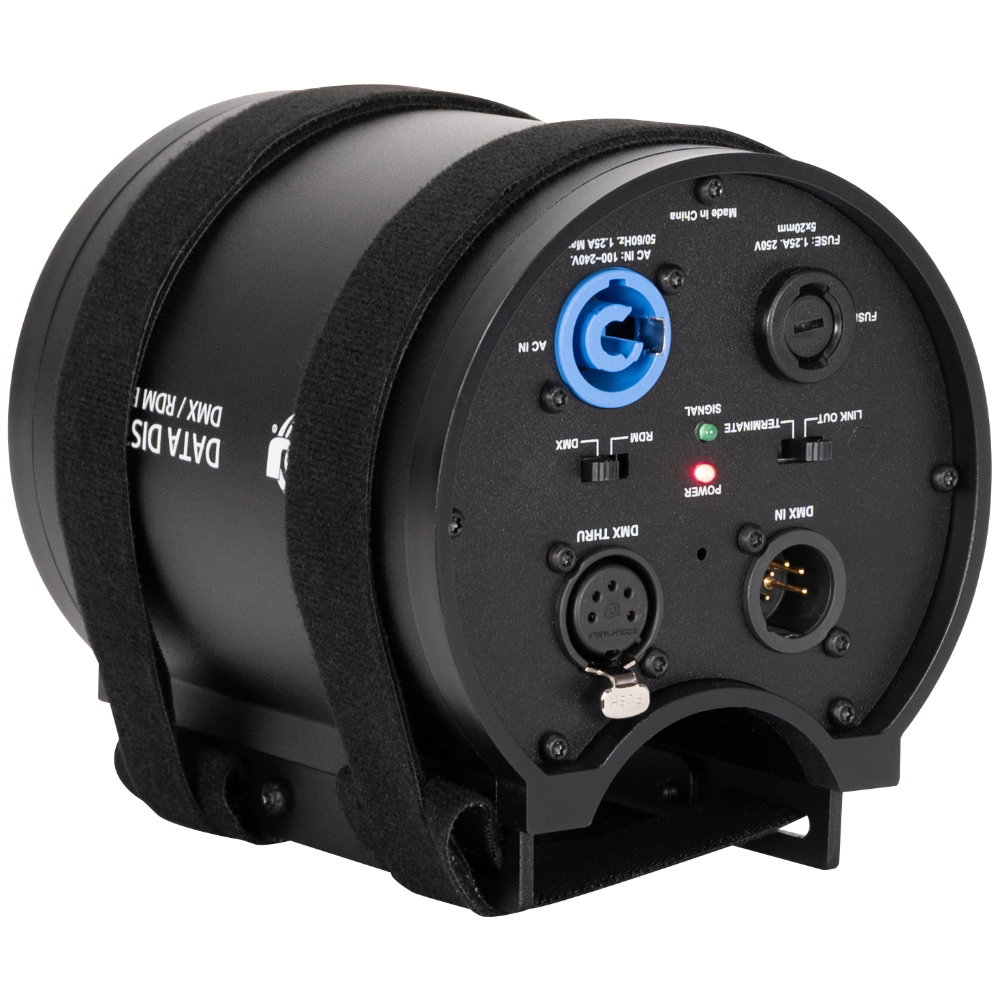

    The ADJ Data Distro 6 is a compact 6-way DMX-512 and RDM signal splitter. Built for truss mounting with Velcro straps or an optional M10 clamp, it takes one 5-pin XLR input, passes it through a thru socket and distributes to six isolated 5-pin XLR outputs. A link-out termination switch and DMX/RDM protocol switch handle the usual install edge cases.

    Outputs
    6 way
    Protocol
    DMX / RDM
    Mount
    Truss / clamp
    Connectors
    5-pin XLR
    Features
    ✓6-way DMX-512 / RDM signal splitter
    ✓1 x 5-pin XLR input + 1 x 5-pin XLR thru

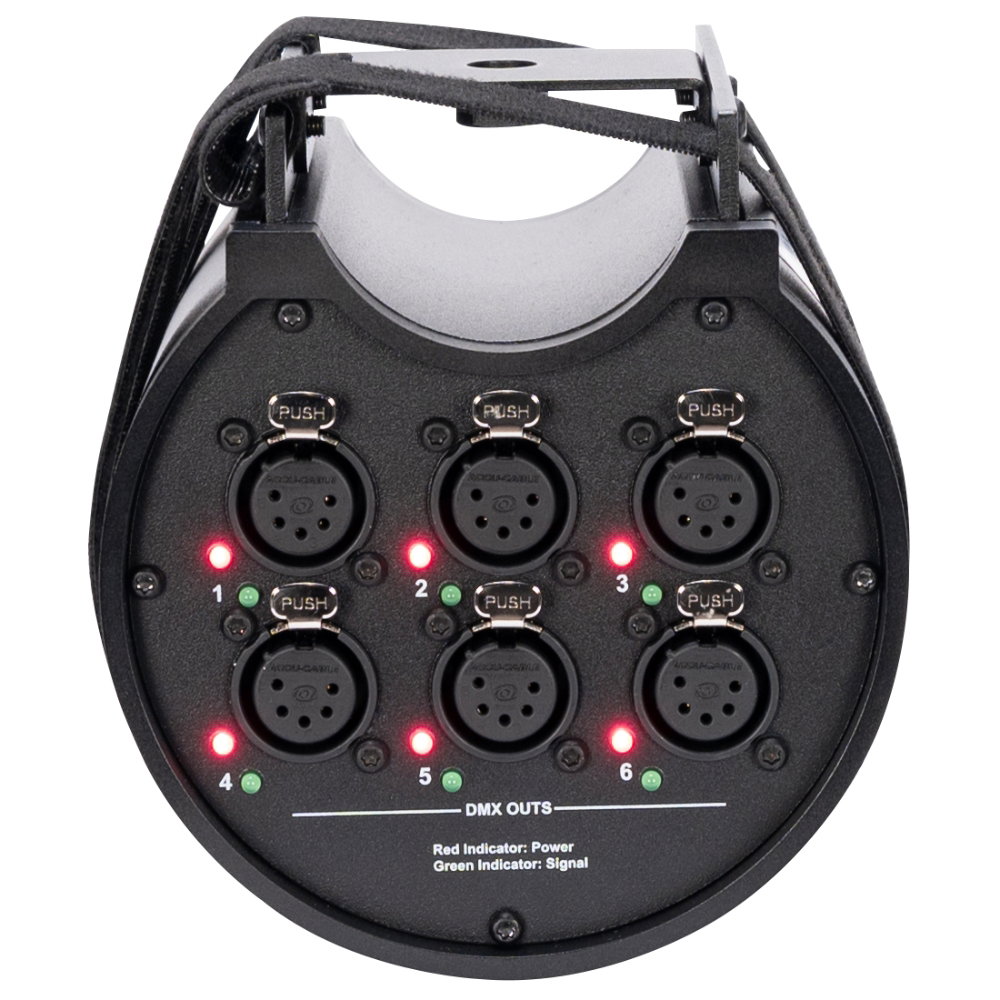

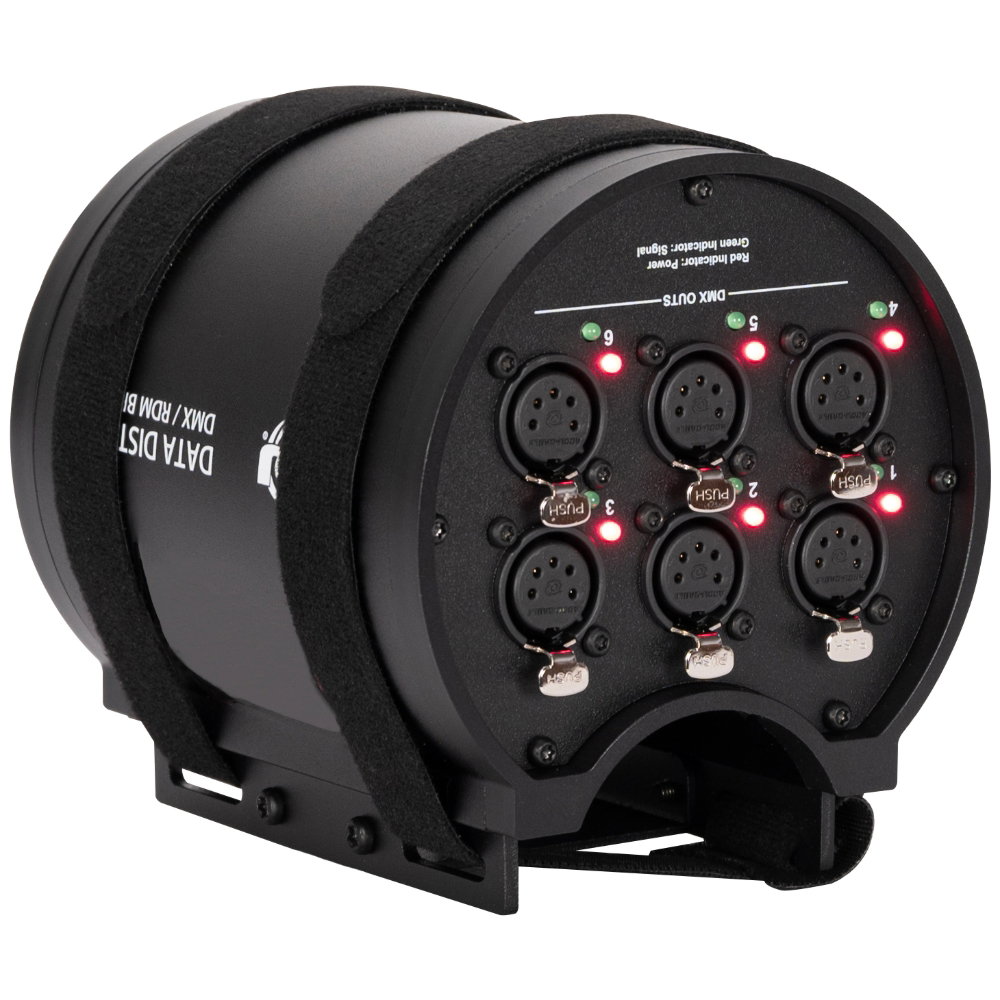

    ✓6 x 5-pin XLR outputs
    ✓Link-out termination switch
    ✓DMX / RDM protocol switch

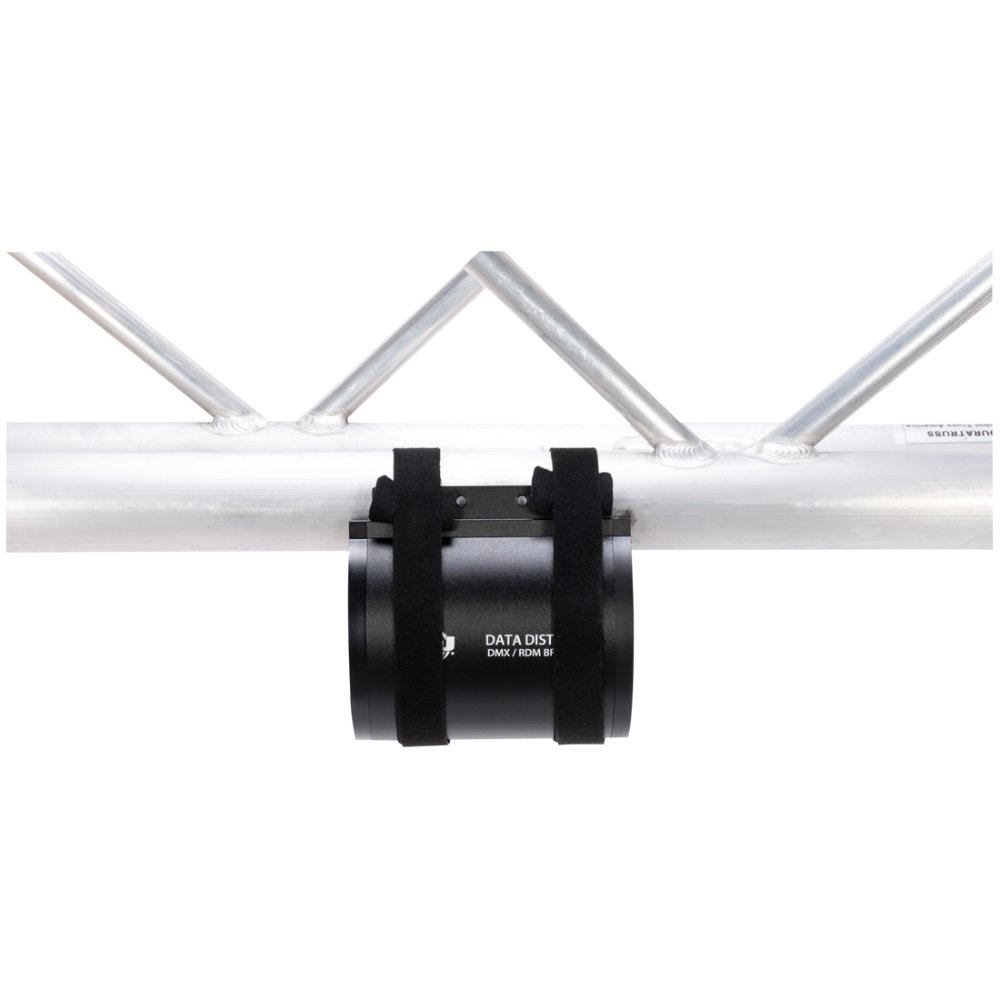

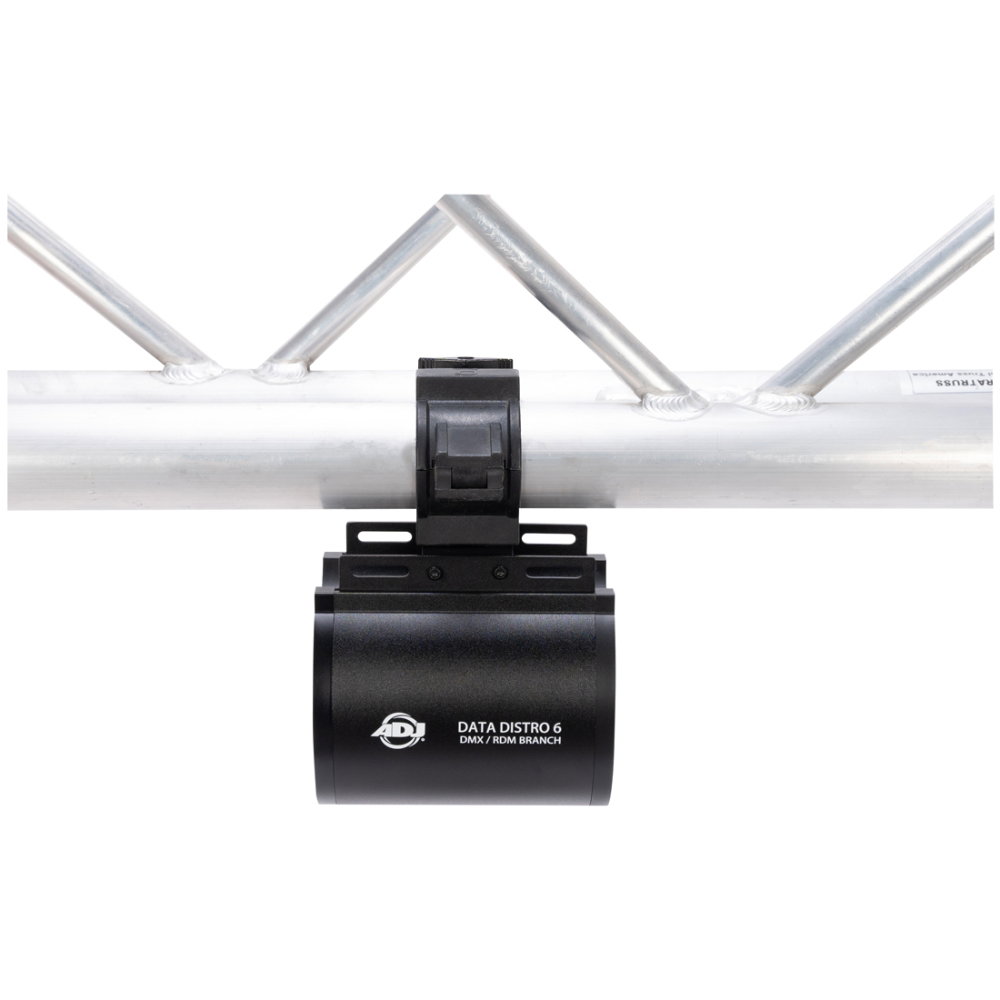

    ✓Truss mount with Velcro straps (M10 clamp sold separately)
    ✓Indoor locking power socket
    Specifications
    Input 1 x 5-pin XLR + 1 x 5-pin XLR thru
    Outputs 6 x 5-pin XLR
    Protocol DMX-512 and RDM (switchable)
    Mounting Truss mount with Velcro or M10 clamp
    Power Locking power socket

    More Information

    Specifications:
    PROTOCOLS:
    • DMX512
    • RDM
    PHYSICAL:
    • 180 degree mounting bracket system
    DIMENSIONS / WEIGHT:
    • Length: 120mm
    • Width: 137.75mm
    • Height: 129.55mm
    • Weight: 0.83kg
    ELECTRICAL:
    • AC Input: 100-230V 50/60Hz
    • Power Consumption: 2.9W @ 230V
    • Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
    THERMAL:
    • Ambient Operational Temperature: -20°C to 45°C
    • Humidity: <75%
    • Storage Temperature: 25°C
    WHAT’S INCLUDED:
    • 2x Straps (used to attach unit to truss)
    • 1x Clamp Mounting Bracket
    • 1x Power Cord
    APPROVALS / RATINGS:
    • IP20
    Specifications subject to change without notice.

    Manuals & Downloads

    PDFManuals & Instructions: adj_data_distro_6_-_user_manual.pdfPDF
