ADJ Aria X2 Bridge Wireless DMX Gateway

SKU: ADJ1321000090
ADJ Aria X2 Bridge Wireless DMX Gateway
ADJ Aria X2 Bridge Wireless DMX Gateway
ADJ Aria X2 Bridge Wireless DMX Gateway
ADJ Aria X2 Bridge Wireless DMX Gateway
ADJ Aria X2 Bridge Wireless DMX Gateway
ADJ Aria X2 Bridge Wireless DMX Gateway
ADJ Aria X2 Bridge Wireless DMX Gateway
ADJ Aria X2 Bridge Wireless DMX Gateway
Click to enlarge

    £347.00 inc VAT
    £289.17 ex VAT

    1 in stock

    Order in 18h 24m 11s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The ADJ Aria X2 Bridge links the new Aria X2 wireless DMX protocol to existing wireless systems — including ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria — so you can mix new and legacy fixtures on the same wireless network. Frequency-agile across 2.4 GHz and 868/863 MHz (EU) bands with BLE configuration and over-the-air firmware updates, it’s ADJ’s modern wireless DMX backbone.

    Protocol
    Aria X2
    wireless DMX
    Compat
    WiFLY / eFly
    MagFly / Aria
    Bands
    2.4 GHz / 868 MHz
    863 MHz (EU)
    Config
    BLE + menu
    Features
    ✓Bridges Aria X2 to WiFLY, eFly, MagFly and Acclaim Aria
    ✓Frequency-agile across 2.4 GHz and 868/863 MHz bands (EU)
    ✓Seamless band switching for network reliability

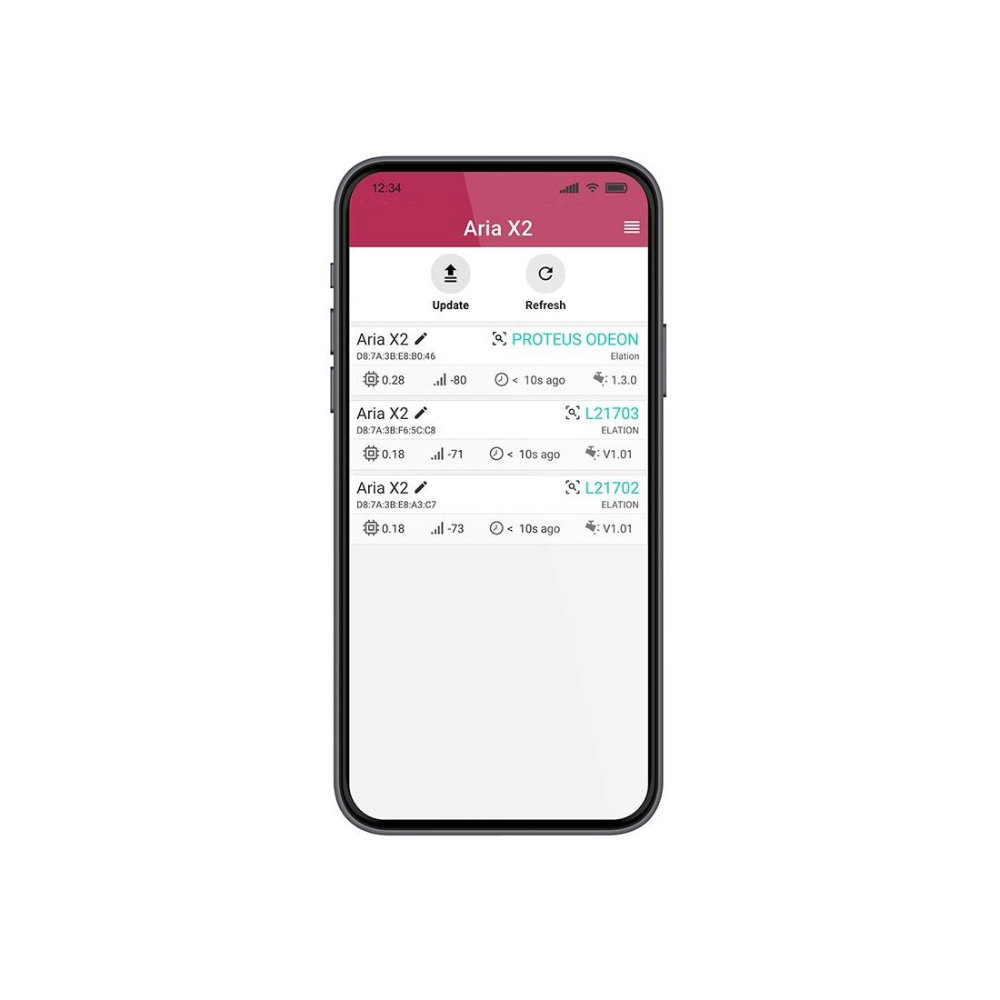

    ✓Bluetooth Low Energy configuration from the app
    ✓Over-the-air firmware and fixture menu updates
    ✓Wireless mesh foundation with multi-hop DMX support
    ✓Frequency hopping for reduced interference (future release)
    Specifications
    Protocol Aria X2
    Compatible systems ADJ WiFLY, Elation eFly, Magmatic MagFly, Acclaim Aria
    EU frequencies 2.4 GHz / 868 MHz / 863 MHz (802.15.4)
    Configuration Bluetooth Low Energy + unit menu
    Firmware OTA updates via cloud repository

    More Information

    SPECIFICATIONS
    Features
    • Single DMX Universe
    • 900Mhz., 2.4 GHz WiFi and Bluetooth
    • Configuration via App (Coming Soon) or Front panel
    • Wireless to DMX or DMX to Wireless
    • Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
    • SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2
    Supported Protocols
    • DMX
    • RDM (Planned for future software release)
    • Proprietary 802.15.4
    • Aria X2 Mesh Protocol (Planned for future software release)
    • Bluetooth 5.2 (BLE)
    • Aria X2 Serial Protocol
    • This is our proprietary serial protocol for communicating with a variety of fixtures.
    RF Characteristics
    • Frequency range
    • 2404-2480 MHz
    • 863-870 MHz (EU)
    • 902-928 MHz
    • Radio module: Aria X2
    • Interference mitigation
    • CSMA
    • Adaptive frequency hopping (on the roadmap)
    • OTA updates

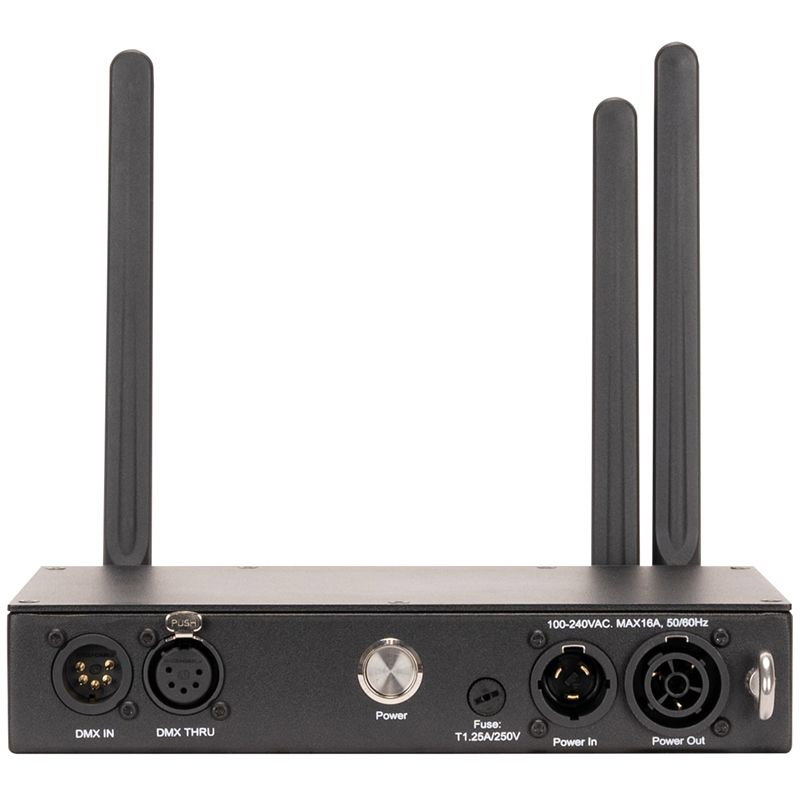

    Connectors
    • Antenna: 5G JT SMA
    • DMX: 5-pin XLR Input and Output
    • DC: 2.5mm/5.5mm Barrel connector
    • Outdoor Locking Power Input and Output
    Power
    • AC100-240V 50/60Hz
    • Power Consumption: 2W
    • Power Fuse: T1.25A/250V. (5 x 20mm)
    Physical
    • IP20 Aluminium / Metal enclosure

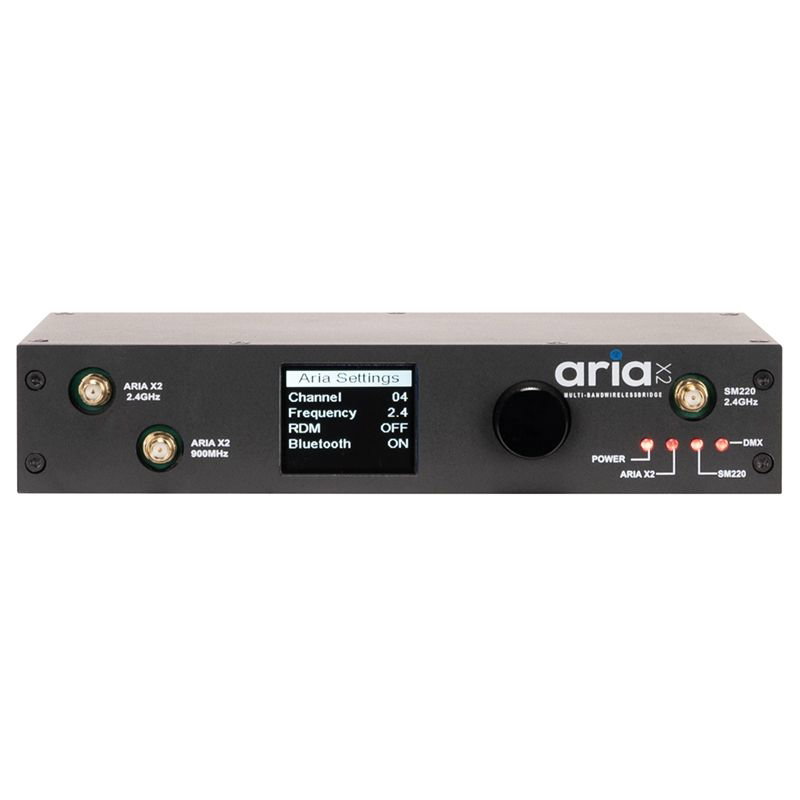

    • Front panel digital screen and rotary knob

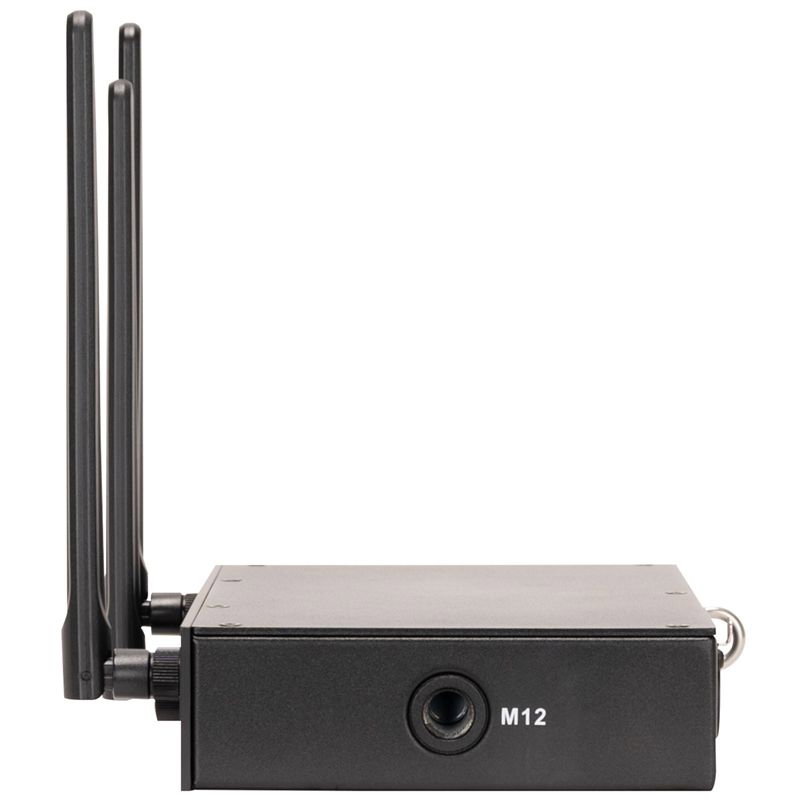

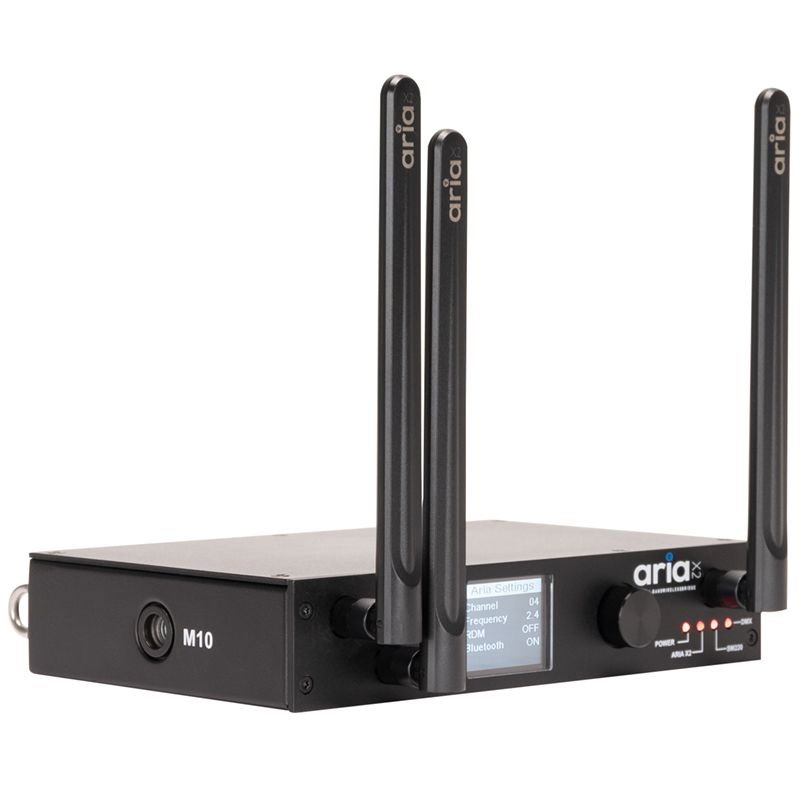

    • M10 and M12 Threads
    • Safety Eyelet
    • Max ambient operating temp: 45°C
    • Max operating humidity: 75%
    • Storage temperature: 25°C
    • Rack and wall mount accessories
    Dimensions and Weight
    • Length: 163.95mm
    • Width: 215.30mm
    • Height: 42mm
    • 1.23kgs
    Specifications subject to change without notice.

    Manuals & Downloads

    PDFManuals & Instructions: ADJ1321000090_ManualPDF
    PDFManuals & Instructions: ADJ1321000090_DatasheetPDF
