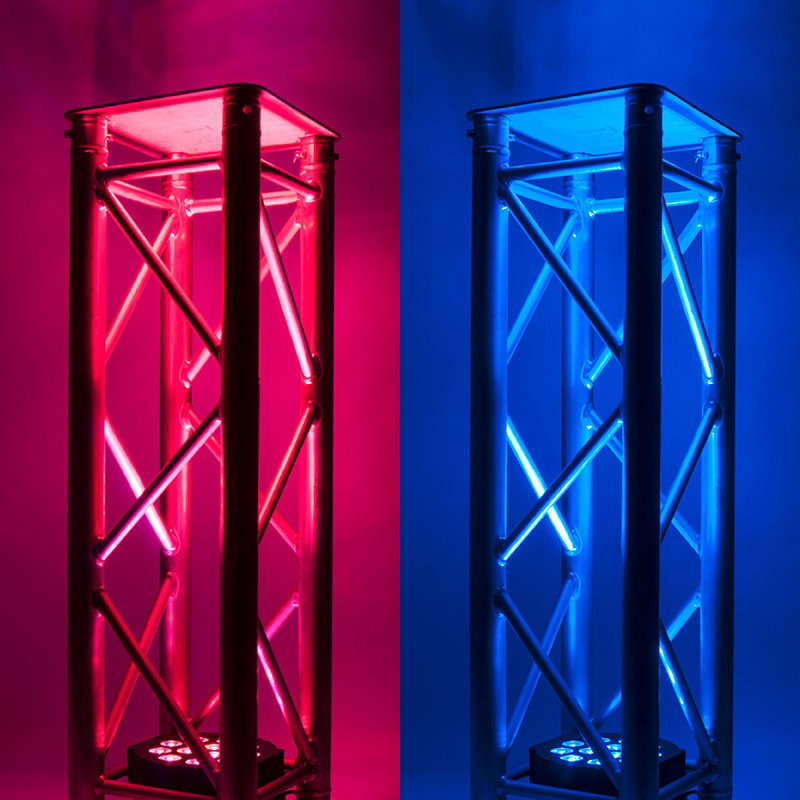

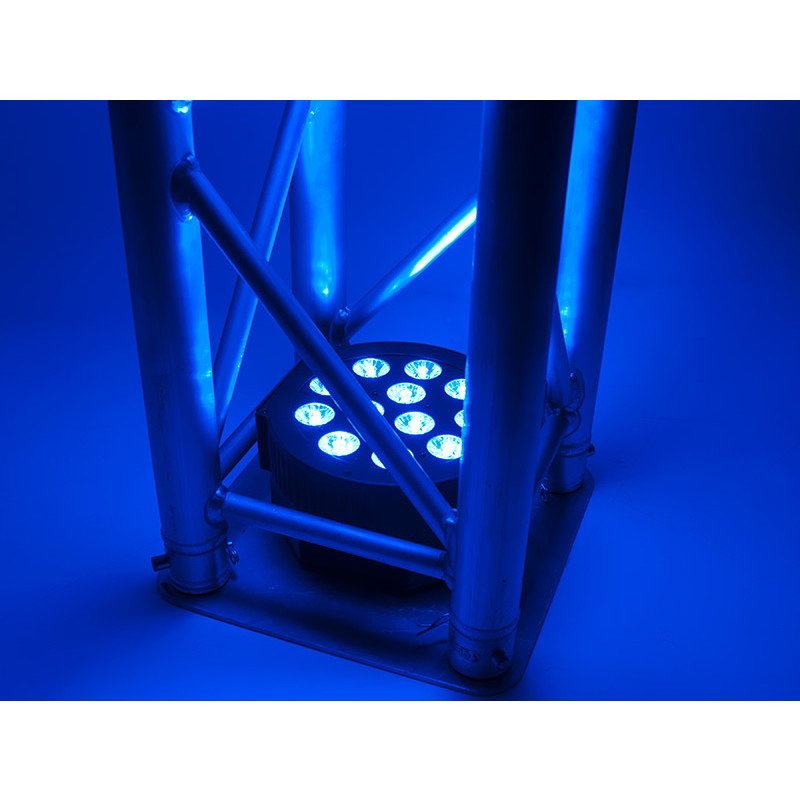

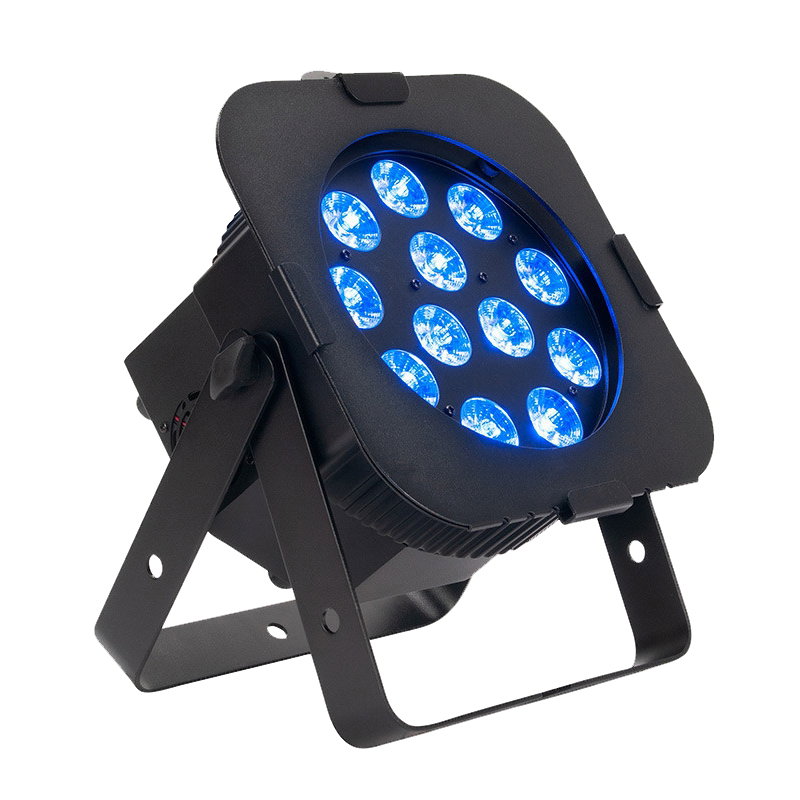

The ADJ 12PX HEX is a metal-bodied LED par can with twelve 12-Watt six-in-one HEX LEDs (red, green, blue, amber, white and UV) delivering wide-gamut colour mixing through a 25° beam. A choice of 3-pin or 5-pin DMX and compatibility with the optional Dotz Par RF wireless remote make it flexible for uplighting, stage wash and venue install.
LEDs
12 × 12W
RGBAW + UV HEX
Beam Angle
25°
DMX Modes
4
6/7/8/12 ch
Colour Macros
63
Features
✓12 x 12W six-in-one HEX LEDs (RGBAW + UV)
✓25° beam for smooth wide washes
✓63 built-in colour macros
✓4 DMX channel modes (6, 7, 8, 12)
✓5 operational modes and 5 dim curves
✓All-metal construction

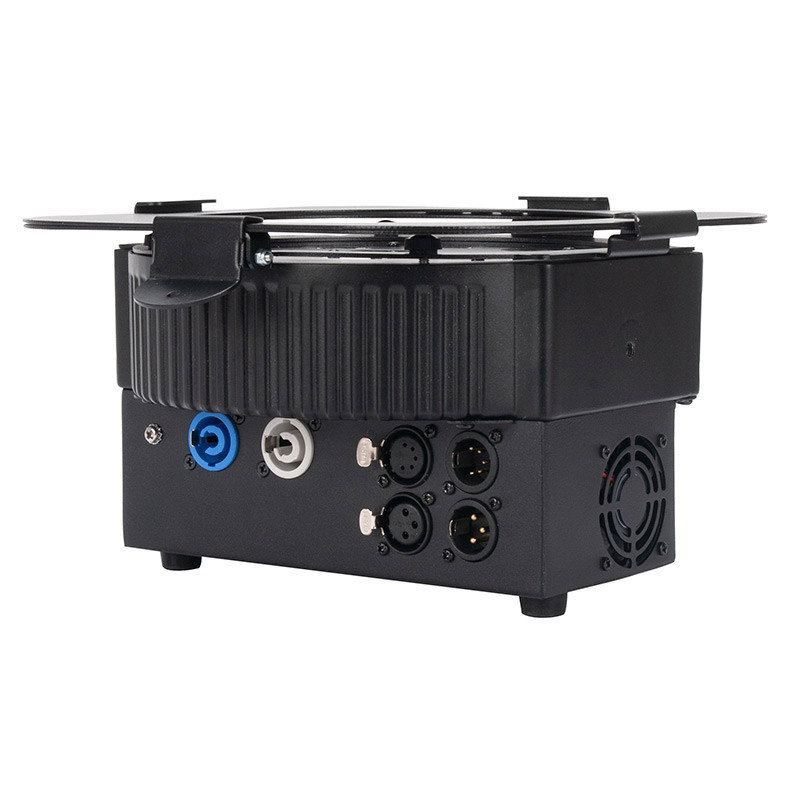

✓Choice of 3-pin or 5-pin DMX connectors
✓Compatible with optional Dotz Par RF wireless remote

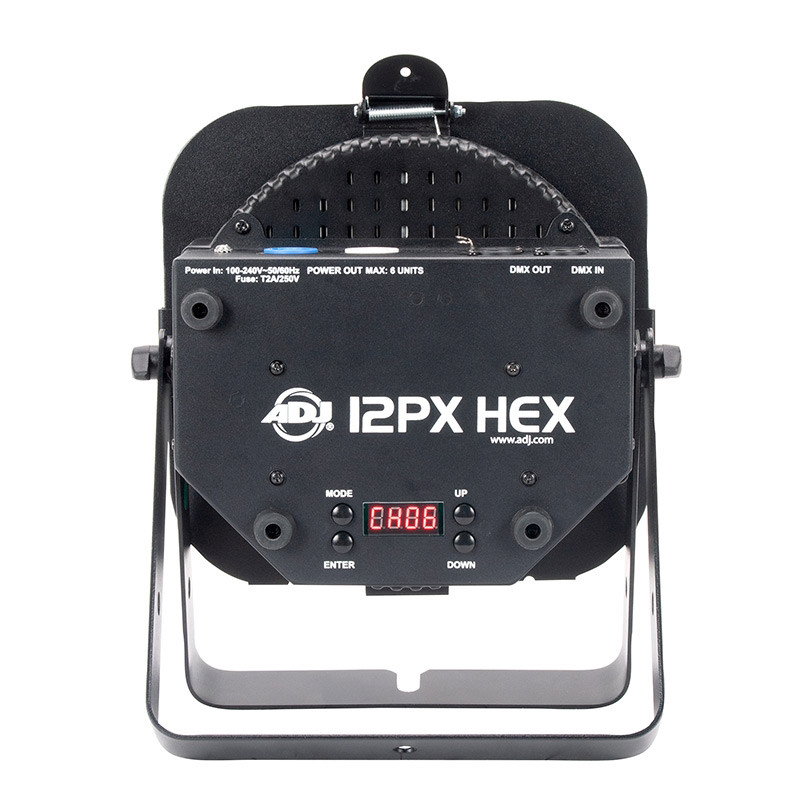

✓4-button DMX menu with digital display
✓Flicker-free operation
Specifications
| LED source | 12 x 12W HEX (RGBAW + UV) |
| Beam angle | 25° |
| Colour macros | 63 built-in |
| DMX modes | 4 (6/7/8/12 channels) |
| Operational modes | 5 |
| Dim curves | 5 |
| DMX connectors | 3-pin or 5-pin |
| Construction | All-metal |
| Remote | Compatible with optional Dotz Par RF |
